Rated Power 5KW Silent Diesel Generator Single / Many Purchase

Place of Origin Chongqing, China
Brand Name Huanneng Dongli
Certification ISO9001, CE
Model Number KN7000-J
Minimum Order Quantity 1 set
Price $200-$600/set
Packaging Details Standard carton/wooden case
Delivery Time 1-7 working days
Payment Terms T/T, L/C, Western Union, etc.
Supply Ability 1000 sets/month
Product Details
Product Name Rated Power 5KW Silent Diesel Generator Starting System Electric
Warranty Time 12 Months Voltage 220V/380V/240V (as Customer's Requirements)
Phase Three/single Insulation Class F Grade
Feature Vertical Single Cylinder, 4 Stroke, Air Cooled Feature2 Single Purchase
Leave a Message
Product Description

Rated Power 5KW Silent Diesel Generator

Features:



1. Low running noise

High efficiency combustion system ensures complete combustion, a large silencer dampens exhaust noise and engine sounds are contained by a double wall structure and liner absorber.





2. Application of new AVR

The automatic voltage regulator (AVR) not only can smooth the output but also provides protection against overload, avoiding expensive damage.



3. Strong power

All generators are powered with four stroke diesel engines.

Frequently Asked Questions:



1: The gasoline generator does not generate electricity ~ the voltage cannot reach 220V



1. Blow the throttle down and try. After the accelerator, the voltage of the voltmeter reaches 220V, which is the phenomenon of insufficient fuel. Just fill up with petrol.

2. Adjust the AVR electronic regulator, remove it, and use a small flat-blade screwdriver to adjust to 220V. If it burns out, you need to contact customer service to replace it.



Two: The reason why the gasoline generator can't start?



1. The main reason for gasoline generators is to check whether the spark plugs are ignited. If the spark plug does not fire, replace the spark plug. If it still doesn't work, it's time to check the high voltage package and motor.



2. The gasoline pump of the gasoline generator is dirty, just remove it and clean it with gasoline.



3. In this case, the oil quality of the fuel can be replaced (the oil is impure or has water).



4. It is more troublesome to pull the cylinder of the gasoline engine. It is necessary to open the cylinder to check one by one, which is caused by the damage of spare parts.



Three: After the gasoline generator is started, the voltage is unstable and the noise is loud?



After the generator starts, the voltage is unstable (high and low) and the noise becomes louder. Preliminary analysis may be that the electronic regulator is broken.





Four: The small generator can't start when it catches fire



1. First check whether the oil and gasoline are newly added. If not, it has been added for more than three months before, and both the oil and gasoline need to be drained and replaced. (Because the validity period of oil and gasoline is only three months, oil and gasoline more than three months have lost their viscosity and have no effect.



2. Whether the oil and gasoline of the small generator are full, if the generator is not full, it will not be able to ignite and start.



3. If all of the above are satisfied, check whether the spark plug fires. If not, remove the spark plug and put some gasoline on it to see if the alternator catches fire. If it ignites, it will start.



Five: Electric start gasoline generator starting method



1. Fill up the oil and fuel in the corresponding fuel tank of the generator.



2. Connect the battery wires (the red wire is connected to the positive electrode, and the black wire is connected to the negative electrode)



3. Unscrew the key to start the machine.



Six: the service life of gasoline generators



The main thing is that there is no shortage of oil. A Nook small generator with frequent oil changes can last a lifetime. Remember, oil needs to be changed frequently, oil is essential. Oil is equivalent to lubricating oil, which plays a lubricating role and can lubricate the generator. The bearings and crankshaft inside keep the parts inside the machine moisturizing, and at the same time run normally, increasing the life of the generator!



Technical parameters:

Model No. KN7000-J KN8000-J KN9000-J KN10000-J
Engine Model 186F 188F 192F 198F
  Type Vertical single cylinder, 4-stroke, air-cooled, direct injection
  Bore x Stroke 86x72mm 88x75mm 92x75mm 98x84mm
  Displacement 410cc 456cc 499cc 633cc
  Ignition system Compression ignition
  Starting system Electric
  Fuel loss rate ≤281g/kw.h ≤295g/kw.h ≤310g/kw.h ≤310g/kw.h
  Fuel type Diesel: 0(summer)-10(winter)-35(severe cold)
  Oil capacity 1.3 liters 1.5 liters 1.5 liters 1.65 liters
Generator Rated voltage 230V/400V
  Rated frequency 50Hz
  Max current 23.9A 28.2A 32.6A 39.1A
  Rated output power 5.0KW 6.0KW 7.0KW 8.0KW
  Max.output power 5.5KW 6.5KW 7.5KW 9.0KW
  Phase Single/Three
  Power factor 1.0/0.8 cos
  Insulation class F grade
  Excitation way AVR voltage automatic adjustment
Accessory configuration Control panel Digital display table
  Fuel indicator Yes
  Oil alarm Yes
  Battery capacity 12V-32AH Maintenance-free battery 12V-36AH Maintenance-free battery
  Castor accessory Standard
  Fuel capacity 20 liters 20 liters 20 liters 20 liters
Others Weight 158kg 160kg 165kg 216kg
  Continous working time 8h
  Size (L*W*H)

105*61*80



102*67*93
  Packing Standard carton
  Noise 75 dBA/7m 65 dBA/7m



Model No. KN13000-J KN18000-J KN20000-J
Engine Model EV80/292 2V98 2V98
  Type V-type twin/in-line twin cylinder, 4-stroke, air-cooled, direct injection
  Bore x Stroke

86x72mm/

92x75mm

98x88mm 98x88mm
  Displacement 840cc/997cc 1326cc 1326cc
  Ignition system Compression ignition
  Starting system Electric
  Fuel loss rate ≤270g/kw.h ≤250g/kw.h ≤250g/kw.h
  Fuel type Diesel: 0(summer)-10(winter)-35(severe cold)
  Oil capacity 1.7/2.6 liters 3.2 liters 3.2 liters
Generator Rated voltage 230V/400V
  Rated frequency 50Hz
  Rated output power 10KW 15KW 16KW
  Max current 47.8A 65.2A 69.5A
  Max.output power 11KW 16KW 18KW
  Phase Single/Three
  Insulation class F grade
  Power factor 1.0/0.8 cos
  Excitation way AVR voltage automatic adjustment
Accessory configuration Control panel Digital display table
  Fuel indicator Yes
  Oil protector Yes
  Battery capacity 12V-36AH Maintenance-free battery 12V-45AH Maintenance-free battery
  Castor accessory Standard
  Fuel capacity 25 liters 30 liters
Others Weight 240kg 330kg 340kg
  Continous working time 8h


Generator size

(L*W*H)(cm)

116*66*90

130*80*103



  Packing Standard carton
  Noise 70 dBA/7m 78 dBA/7m

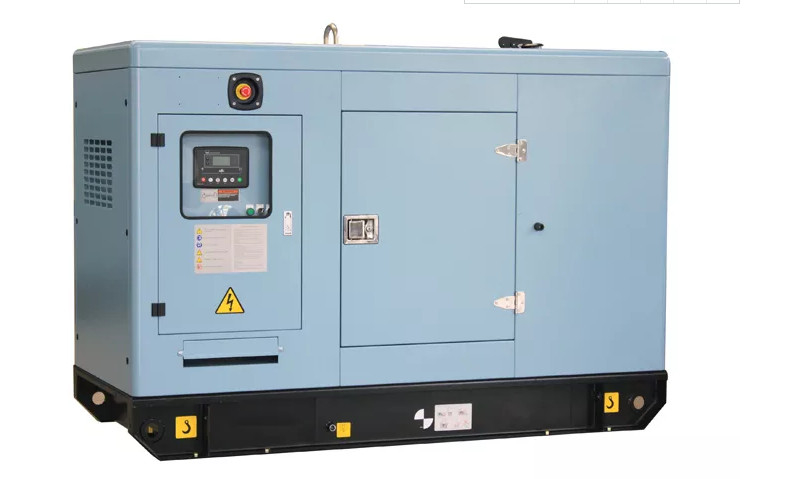

Product pictures:
