Single Cylinder Four Stroke Poweful Environmental Diesel Engine 173FB
Single Cylinder Four Stroke Diesel Engine 173FB
Features:
1. Unique transmission technology
The second generation small air-cooled diesel engine adopts a well-designed gear transmission mechanism, which greatly reduces vibration and noise, and its performance is better than that of similar oil recovery engines.
2. Perfect injection technology
The self-developed lightweight injection system can ensure that every drop of fuel is used to the fullest. The high-precision injection pump and direct injection system enable optimal fuel consumption. A good air intake system allows fuel to be completely burned and engine emissions to meet international standards.
Technical parameters:
| Model | HN173FB | HN178F | HN186FA |
| Type | Single cylinder, four stroke, air cooled, vertical, direct injection | ||
| Combustion system | Direct injection | ||
| The cylinder diameter x Trip | 73x59 | 78x62 | 86x72 |
| Displacement (L) | 0.247 | 0.296 | 0.418 |
| Compression ratio | 20:1 | 20:1 | 19:1 |
| Rated power/speed (Kw/rpm) | 3.2/3000, 3.6/3600 | 3.7/3000, 4.0/3600 | 5.8/3000, 6.6/3600 |
| Max power/speed (Hp/rpm) | 4.3/3000, 4.8/3600 | 5.0/3000, 5.5/3600 | 7.9/3000, 9.0/3600 |
| Rated speed | 3000/3600 | 3000/3600 | 3000/3600 |
| Start the way | F: Manual start, E: electric start | ||
| Tank volume (L) | 2.5 | 3.5 | 5.5 |
| Lubricating oil capacity (L) | 0.75 | 1.1 | 1.65 |
| Fuel consumption (L/H) | ≤1.2 | ≤1.41 | ≤2.15 |
| Fuel brand | Diesel: 0x10(summer), -10x10(winter) | ||
| Lubricating oil brand | Sae10w30 (above CD level) | ||
| Dimensions (LxWxH) (mm) | 332x376x415 | 385x420x450 | 420x440x495 |
| The net weight (kg) |
Manual start: 28 Electric start: 32 |
Manual start: 33 Electric start: 38 |
Manual start: 47 Electric start: 53 |

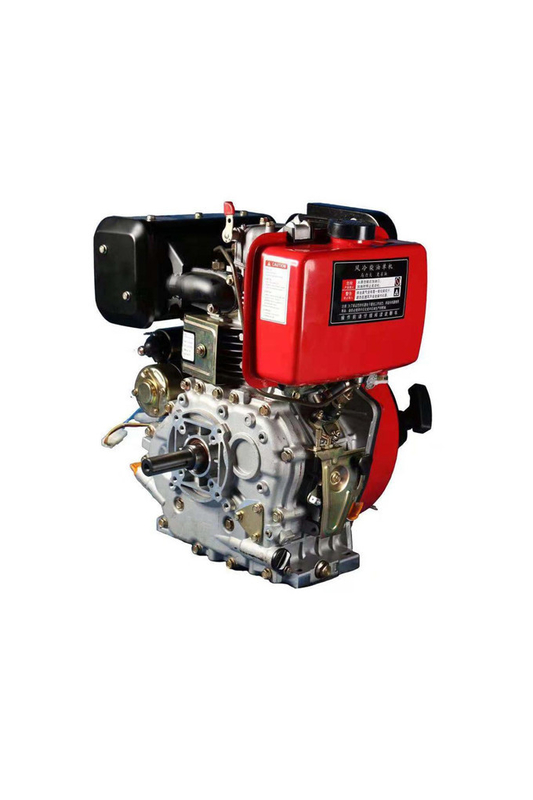

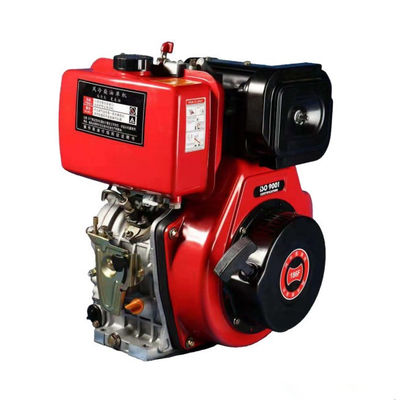

Product pictures:
