3kw Open Frame Diesel Generator 233cc 420cc 520cc ISO9001

Place of Origin Chongqing, China
Brand Name Huanneng Dongli
Certification ISO9001, CE
Model Number KN4000-C
Minimum Order Quantity 1 set
Price $300/set
Packaging Details Standard carton, wooden case
Delivery Time 1-7 wprking days
Payment Terms T/T, L/C, Western Union, etc.
Supply Ability 1000 sets/month
Product Details
Product Name Vertical Single Cylinder Open Frame Diesel Generator Feature Vertical Single Cylinder Open Frame
Size 68*46*55cm Weight 70kg
Power 3kw Voltage 220v/380v/440v (as Customer's Requirements)
Color As Customer's Requirements Material Bronze
Start Way Electric/manual Phase Single Phase/three Phase
Feature2 Direct Selling Price
High Light

Open Frame Diesel Generator 420cc

,

3kw diesel generator ISO9001

,

3kw diesel generator 233cc

Leave a Message
Product Description

Direct Selling Price Vertical Single Cylinder Open Frame Diesel Generator 3KW



Features:



1. Strong power, all ring power diesel generators are equipped with a strong self-developed four stroke engine automatic pressure reducing mechanism to ensure fast start.

2. Low noise, efficient combustion system to ensure complete combustion, effectively reduce the noise of the engine. In addition, the noise of the unit is greatly reduced by the double-layer noise reduction structure of the integrated shell and the inner lining of silent unit and the large-scale attenuator device.

3. The low oil pressure alarm device will automatically shut down the motor set when the oil pressure drops to the safety warning line, and can not start normally until the oil is replenished, so as to avoid damage to the unit.

4. The new automatic voltage regulator (AVR) can reduce the voltage fluctuation to a lower limit and ensure a more stable unit output.

5. Overload protection capacity: when the unit is over 110% overload, the unit will automatically protect the unit from overload damage.(optional)

6. All control units are centralized on the intelligent control panel, and users can know the real-time operation conditions of the unit, so that the users have no worries.(optional)

7. Humanized design and appearance improvement of Huanneng power generator set inject more humanized design ideas. Most models are equipped with casters, which is convenient for unit movement.



Technical parameters:



Model No. KN4000-C KN7000-C KN8000-C KN10000-C KN12000-C
Engine Model 178FE 188FE 188FE 192FE 195FE
Type Vertical single cylinder, 4-stroke, air-cooled, direct injection
Bore x Stroke 78x62mm 88x75mm 88x75mm 92x75mm 95x75mm
Displacement 233cc 420cc 420cc 499cc 520cc
Ignition system Compression ignition
Starting system Manual Electric Electric Electric Electric
Fuel consume per hour 0.7-1L 2L 2L 2.3L 2.5L
Fuel type Diesel: 0(summer)-10(winter)-35(severe cold)
Oil capacity 1.1 liters 1.5 liters 1.5 liters 1.7 liters 1.7 liters
Generator Rated voltage 220V 220V 220V 220V 220/380V
Rated frequency 50Hz 50Hz 50Hz 50Hz 50Hz
Rated output power 3000W 5000W 6000W 7500W 8000W
Max.output power 3500W 5500W 6500W 8000W 9000W
Insulation class F grade
Excitation way AVR voltage automatic adjustment
Accessory configuration Control panel Digital display table
Fuel indicator Yes
Oil protector Yes
Castor accessory Standard
Fuel capacity 12.5L
Others Weight 70kg 102kg 105kg 110kg 115kg
Continous working time 8h

Generator size

(L*W*H)(cm)

68*46*55

70*48*73.5 70*48*73.5 70*48*73.5 70*48*73.5

Packing size

(L*W*H)(cm)

69*48*57 72*50.5*66 72*50.5*66 72*50.5*66

72*50.5*66

Packing Standard carton
Noise 70 dBA/7m 80 dBA/7m 80 dBA/7m 80 dBA/7m 80 dBA/7m

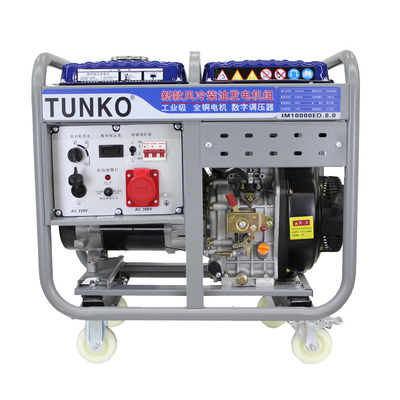

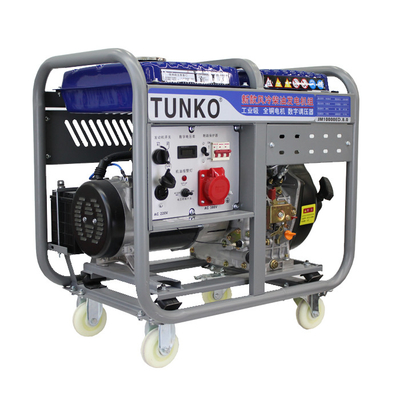

Product picture:
