Open Frame Diesel Generator
>
|
| Place of Origin | Chongqing, China |
| Brand Name | HUAN NENG |
| Certification | CE, ISO 14001, ISO 9001 |
| Model Number | HN12000 |

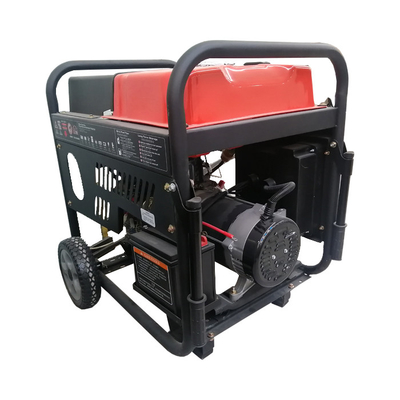

Single-Phase Powerful First-Rate Vertical Direct-Injection Diesel Generator
Luxury single-phase diesel generator
merit you can see:
1. Patented appearance design, elegant appearance, easy to move.
2. Power upgrade, no decompression design to effectively protect the battery and starter motor.
3. Pure copper large motor, sufficient power, high temperature resistance.
4. Waterproof panel, safe and reliable, Easy to use.
Introduction: Our machines are easy to start. And with overload protection, safe operation
Adopt solid muffler to effectively reduce noise. And the waterproof protection of the OFF/ON switch is a good assistant in your life. Full frame protection, very easy to carry and carry, small and light, easy for teenagers to pick up and carry, small and light, casual, emergency, home portable power, backup power, emergency power, overall, it will come in handy whenever you lose power.
The details :
| Unit Type | Luxury Huanneng Power 6500 | Luxury Huanneng Power 8000 | Luxury Huanneng Power 10000 | Luxury Huanneng Power 12000 | Luxury Huanneng Power 13000 | |
| GENERATOR | Excitation method | AVR voltage automatic adjustment | AVR voltage automatic adjustment | AVR voltage automatic adjustment | AVR voltage automatic adjustment | AVR voltage automatic adjustment |
| Rated output power | 5KW | 6KW | 7.5KW | 8KW | 9.0KW | |
| maximum output power | 5.5KW | 6.5KW | 8KW | 9KW | 10.0KW | |
| Rated voltage | 220V | 220V | 220V | 220V/380V | 220V/380V | |
| Insulation class | Class F | Class F | Class F | Class F | Class F | |
| Rated frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | |
| ENGINE | engine model | 188FE | 188FE | 192FE | 195FE | 1100FE |
| Bore*stroke | 88*75mm | 88*75mm | 92*75mm | 95*75mm | 100*75mm | |
| ignition method | compression ignition | compression ignition | compression ignition | compression ignition | compression ignition | |
| engine type | Vertical | single-cylinder | four-stroke | direct injection | air-cooled | |
| Displacement | 420cc | 420cc | 499cc | 520cc | 535cc | |
| Engine fuel consumption per hour | 2L | 2L | 2.3L | 2.5L | 2.5L | |
| fuel type | 0/10/35(on weather) | 0/10/35(on weather) | 0/10/35(on weather) | 0/10/35(on weather) | 0/10/35(on weather) | |
| oil quantity | 1.5L | 1.5L | 1.7L | 1.7L | 1.8L | |
| Start method | Electric start | Electric start | Electric start | Electric start | Electric start | |
| Attachment configuration | control panel | digital display | digital display | digital display | digital display | digital display |
| fuel indicator | Have | Have | Have | Have | Have | |
| oil protector | Have | Have | Have | Have | Have | |
| Caster attachment | Standard | Standard | Standard | Standard | Standard | |
| fuel capacity | 20L | 20L | 20L | 20L | 20L | |
| THE others | noise | 80dBA/7m | 80dBA/7m | 80dBA/7m | 80dBA/7m | 80dBA/7m |
| Continuous working time | 8h | 8h | 8h | 8h | 8h | |
| Machine size L*W*H including wheel height) | 710*560*765 | 710*560*765 | 710*560*765 | 710*560*765 | 710*560*765 | |
| Packaging size L*W*H | 770*770*725 | 770*770*725 | 770*770*725 | 770*770*725 | 770*770*725 | |
| Package | carton | carton | carton | carton | carton | |
| weight | 108kg | 110kg | 115kg | 120kg | 140kg | |
