In-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KW

Place of Origin Chongqing, China
Brand Name Huanneng Dongli
Certification ISO9001, CE
Model Number KN7000-J
Minimum Order Quantity 1 set
Price $200-$600/set
Packaging Details Standard carton/wooden case
Delivery Time 1-7 working days
Payment Terms T/T, L/C, Western Union, etc.
Supply Ability 1000 sets/month
Product Details
Product Name 186F Engine 4 Stroke Silent Diesel Generator Feature In-stock Supply
Starting System Electric Color Yellow, Red, White Etc.
Voltage 220V/380V/240V (as Customer's Requirements) Phase Three/single
Insulation Class F Grade
Leave a Message
Product Description

Features:



(1) The comprehensive cost of construction and power generation of diesel generator sets is low
(2) The supporting equipment is compact in structure and flexible in installation location (water cooling is only 1/10 of the 34~82L/KW·H steam turbine)



Technical parameters:

Model No. KN7000-J KN8000-J KN9000-J KN10000-J
Engine Model 186F 188F 192F 198F
  Type Vertical single cylinder, 4-stroke, air-cooled, direct injection
  Bore x Stroke 86x72mm 88x75mm 92x75mm 98x84mm
  Displacement 410cc 456cc 499cc 633cc
  Ignition system Compression ignition
  Starting system Electric
  Fuel loss rate ≤281g/kw.h ≤295g/kw.h ≤310g/kw.h ≤310g/kw.h
  Fuel type Diesel: 0(summer)-10(winter)-35(severe cold)
  Oil capacity 1.3 liters 1.5 liters 1.5 liters 1.65 liters
Generator Rated voltage 230V/400V
  Rated frequency 50Hz
  Max current 23.9A 28.2A 32.6A 39.1A
  Rated output power 5.0KW 6.0KW 7.0KW 8.0KW
  Max.output power 5.5KW 6.5KW 7.5KW 9.0KW
  Phase Single/Three
  Power factor 1.0/0.8 cos
  Insulation class F grade
  Excitation way AVR voltage automatic adjustment
Accessory configuration Control panel Digital display table
  Fuel indicator Yes
  Oil alarm Yes
  Battery capacity 12V-32AH Maintenance-free battery 12V-36AH Maintenance-free battery
  Castor accessory Standard
  Fuel capacity 20 liters 20 liters 20 liters 20 liters
Others Weight 158kg 160kg 165kg 216kg
  Continous working time 8h
  Size (L*W*H)

105*61*80



102*67*93
  Packing Standard carton
  Noise 75 dBA/7m 65 dBA/7m



Model No. KN13000-J KN18000-J KN20000-J
Engine Model EV80/292 2V98 2V98
  Type V-type twin/in-line twin cylinder, 4-stroke, air-cooled, direct injection
  Bore x Stroke

86x72mm/

92x75mm

98x88mm 98x88mm
  Displacement 840cc/997cc 1326cc 1326cc
  Ignition system Compression ignition
  Starting system Electric
  Fuel loss rate ≤270g/kw.h ≤250g/kw.h ≤250g/kw.h
  Fuel type Diesel: 0(summer)-10(winter)-35(severe cold)
  Oil capacity 1.7/2.6 liters 3.2 liters 3.2 liters
Generator Rated voltage 230V/400V
  Rated frequency 50Hz
  Rated output power 10KW 15KW 16KW
  Max current 47.8A 65.2A 69.5A
  Max.output power 11KW 16KW 18KW
  Phase Single/Three
  Insulation class F grade
  Power factor 1.0/0.8 cos
  Excitation way AVR voltage automatic adjustment
Accessory configuration Control panel Digital display table
  Fuel indicator Yes
  Oil protector Yes
  Battery capacity 12V-36AH Maintenance-free battery 12V-45AH Maintenance-free battery
  Castor accessory Standard
  Fuel capacity 25 liters 30 liters
Others Weight 240kg 330kg 340kg
  Continous working time 8h


Generator size

(L*W*H)(cm)

116*66*90

130*80*103



  Packing Standard carton
  Noise 70 dBA/7m 78 dBA/7m



Product pictures:

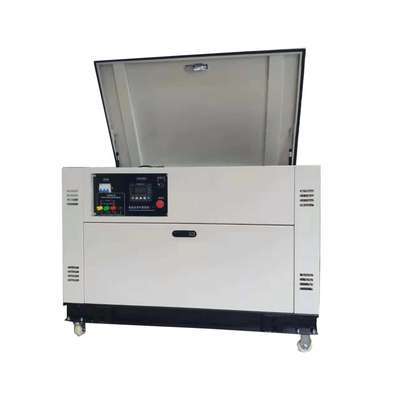

In-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KW 0
