Oil Capacity 1.1 Liters 1.7 Liters Open Frame Diesel Generator 8kw F Grade

Place of Origin Chongqing, China
Brand Name Huanneng Dongli
Certification ISO9001, CE
Model Number KN10000-C
Minimum Order Quantity 1 set
Price $300/set
Packaging Details Standard carton, wooden case
Delivery Time 1-7 wprking days
Payment Terms T/T, L/C, Western Union, etc.
Supply Ability 1000 sets/month
Product Details
Product Name Single Cylinder Air Cooled Open Frame Diesel Generator 8KW Feature Single Cylinder Air Cooled
Size 70*48*73.5cm Weight 105kg
Voltage 220v/380v/440v (as Customer's Requirements) Color As Customer's Requirements
Material Bronze Start Way Electric/manual
Phase Single Phase/three Phase Feature Luxurious
High Light

1.7 liters Open Frame Diesel Generator

,

1.1 liters diesel generator 8kw

,

diesel generator 8kw F grade

Leave a Message
Product Description

Single Cylinder Air Cooling Luxurious Open Frame Diesel Generator 8KW



Single Cylinder Air Cooled Open Frame Diesel Generator 8KW





Features:



1. Strong power, all ring power diesel generators are equipped with a strong self-developed four stroke engine automatic pressure reducing mechanism to ensure fast start.

2. Low noise, efficient combustion system to ensure complete combustion, effectively reduce the noise of the engine. In addition, the noise of the unit is greatly reduced by the double-layer noise reduction structure of the integrated shell and the inner lining of silent unit and the large-scale attenuator device.

3. The low oil pressure alarm device will automatically shut down the motor set when the oil pressure drops to the safety warning line, and can not start normally until the oil is replenished, so as to avoid damage to the unit.

4. The new automatic voltage regulator (AVR) can reduce the voltage fluctuation to a lower limit and ensure a more stable unit output.

5. Overload protection capacity: when the unit is over 110% overload, the unit will automatically protect the unit from overload damage.(optional)

6. All control units are centralized on the intelligent control panel, and users can know the real-time operation conditions of the unit, so that the users have no worries.(optional)

7. Humanized design and appearance improvement of Huanneng power generator set inject more humanized design ideas. Most models are equipped with casters, which is convenient for unit movement.





Application:



1. Coordinated control of battery energy storage and diesel generators in independent AC microgrids
In the independent AC microgrid system, the coordinated control between diesel generator and battery energy storage is the key to ensure the stable operation of the system. Taking advantage of the fast response characteristics of battery energy storage, a coordinated control method for diesel generators and energy storage batteries is proposed. When the diesel generator is used as the main power source, the auxiliary power control signal is introduced into the traditional droop control of the energy storage system to prevent the system collapse caused by the long-term overcurrent of the diesel engine and improve the system stability. Aiming at the short-term power failure problem when the main power supply in the microgrid is switched from the energy storage system to the diesel generator or from the diesel generator to the energy storage system, a seamless switching control strategy of the dual main power supply of the diesel generator and the energy storage battery is proposed. . [4]
2. Research on modeling and operation simulation of marine diesel generator sets
The operation process of the marine diesel generator set is an important part of the operation of the power station. The number of diesel generator sets running in parallel determines the capacity of the ship's power station. The stability of parallel operation is closely related to the stability of the ship power station. Establishing a mathematical model that can accurately reflect the operation of diesel generator sets is of great significance to the operation control, simulation and performance analysis of the power station. The research on the parallel operation process of diesel generator sets involves the establishment of diesel generator models, parallel operation control models, and power load models. Among them, although there are some different modeling methods for diesel generator models, most of them are limited to single model simulation. Taking the diesel generator model as the core, a mathematical model of parallel operation of multiple diesel generator sets is established. Taking the ship power station of "Yukun" as the reference object, the diesel generator model, the power load model and the parallel operation control system model are established respectively.





Technical parameters:



Model No. KN4000-C KN7000-C KN8000-C KN10000-C KN12000-C
Engine Model 178FE 188FE 188FE 192FE 195FE
Type Vertical single cylinder, 4-stroke, air-cooled, direct injection
Bore x Stroke 78x62mm 88x75mm 88x75mm 92x75mm 95x75mm
Displacement 233cc 420cc 420cc 499cc 520cc
Ignition system Compression ignition
Starting system Manual Electric Electric Electric Electric
Fuel consume per hour 0.7-1L 2L 2L 2.3L 2.5L
Fuel type Diesel: 0(summer)-10(winter)-35(severe cold)
Oil capacity 1.1 liters 1.5 liters 1.5 liters 1.7 liters 1.7 liters
Generator Rated voltage 220V 220V 220V 220V 220/380V
Rated frequency 50Hz 50Hz 50Hz 50Hz 50Hz
Rated output power 3000W 5000W 6000W 7500W 8000W
Max.output power 3500W 5500W 6500W 8000W 9000W
Insulation class F grade
Excitation way AVR voltage automatic adjustment
Accessory configuration Control panel Digital display table
Fuel indicator Yes
Oil protector Yes
Castor accessory Standard
Fuel capacity 12.5L
Others Weight 70kg 102kg 105kg 110kg 115kg
Continous working time 8h

Generator size

(L*W*H)(cm)

68*46*55

70*48*73.5 70*48*73.5 70*48*73.5 70*48*73.5

Packing size

(L*W*H)(cm)

69*48*57 72*50.5*66 72*50.5*66 72*50.5*66

72*50.5*66

Packing Standard carton
Noise 70 dBA/7m 80 dBA/7m 80 dBA/7m 80 dBA/7m 80 dBA/7m

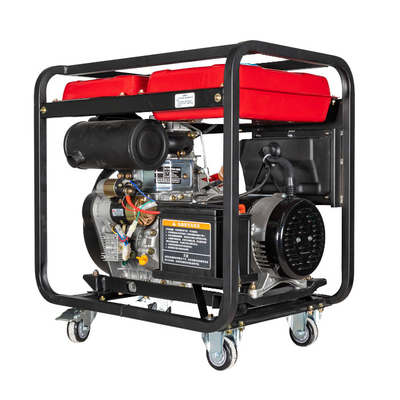

Product picture:
