AVR 6kw 3 Phase Silent Diesel Generator Compression Ignition

Place of Origin Chongqing, China
Brand Name Huanneng Dongli
Certification ISO9001, CE
Model Number KN7000-C
Minimum Order Quantity 1 set
Price $300/set
Packaging Details Standard carton, wooden case
Delivery Time 1-7 wprking days
Payment Terms T/T, L/C, Western Union, etc.
Supply Ability 1000 sets/month
Product Details
Product Name New Automatic Voltage Regulator Electric Diesel Generator Feature New Automatic Voltage Regulator Electric
Size 72*50.5*66cm Weight 105kg
Rated Power 6000W Max Power 6500W
Voltage 220v/380v/440v (as Customer's Requirements) Color As Customer's Requirements
Material Bronze Start Way Electric/manual
Phase Single Phase/three Phase
High Light

AVR 6kw silent diesel generator

,

6kw silent diesel generator Compression ignition

,

6kw 3 phase generator Compression ignition

Leave a Message
Product Description

New Electric Diesel Generator 6KW Lightning Fast Shipping Silent And Car-Accessible



New Automatic Voltage Regulator Electric Diesel Generator





Features:



1. Strong power, all ring power diesel generators are equipped with a strong self-developed four stroke engine automatic pressure reducing mechanism to ensure fast start.

2. Low noise, efficient combustion system to ensure complete combustion, effectively reduce the noise of the engine. In addition, the noise of the unit is greatly reduced by the double-layer noise reduction structure of the integrated shell and the inner lining of silent unit and the large-scale attenuator device.

3. The low oil pressure alarm device will automatically shut down the motor set when the oil pressure drops to the safety warning line, and can not start normally until the oil is replenished, so as to avoid damage to the unit.

4. The new automatic voltage regulator (AVR) can reduce the voltage fluctuation to a lower limit and ensure a more stable unit output.

5. Overload protection capacity: when the unit is over 110% overload, the unit will automatically protect the unit from overload damage.(optional)

6. All control units are centralized on the intelligent control panel, and users can know the real-time operation conditions of the unit, so that the users have no worries.(optional)

7. Humanized design and appearance improvement of Huanneng power generator set inject more humanized design ideas. Most models are equipped with casters, which is convenient for unit movement.



Main Purpose:



daily power supply
Although the power of diesel generator sets is low, they are widely used in mines, railways, field construction sites, road traffic maintenance, factories, enterprises, hospitals and other departments due to their small size, flexibility, light weight, complete supporting facilities, and easy operation and maintenance.
Emergency Power Supply
Diesel generator sets are used where they are not connected to the grid, or as an emergency power source in the event of grid failure, as well as for more complex applications such as peak tripping, grid support and grid output.



Technical parameters:



Model No. KN4000-C KN7000-C KN8000-C KN10000-C KN12000-C
Engine Model 178FE 188FE 188FE 192FE 195FE
Type Vertical single cylinder, 4-stroke, air-cooled, direct injection
Bore x Stroke 78x62mm 88x75mm 88x75mm 92x75mm 95x75mm
Displacement 233cc 420cc 420cc 499cc 520cc
Ignition system Compression ignition
Starting system Manual Electric Electric Electric Electric
Fuel consume per hour 0.7-1L 2L 2L 2.3L 2.5L
Fuel type Diesel: 0(summer)-10(winter)-35(severe cold)
Oil capacity 1.1 liters 1.5 liters 1.5 liters 1.7 liters 1.7 liters
Generator Rated voltage 220V 220V 220V 220V 220/380V
Rated frequency 50Hz 50Hz 50Hz 50Hz 50Hz
Rated output power 3000W 5000W 6000W 7500W 8000W
Max.output power 3500W 5500W 6500W 8000W 9000W
Insulation class F grade
Excitation way AVR voltage automatic adjustment
Accessory configuration Control panel Digital display table
Fuel indicator Yes
Oil protector Yes
Castor accessory Standard
Fuel capacity 12.5L
Others Weight 70kg 102kg 105kg 110kg 115kg
Continous working time 8h

Generator size

(L*W*H)(cm)

68*46*55

70*48*73.5 70*48*73.5 70*48*73.5 70*48*73.5

Packing size

(L*W*H)(cm)

69*48*57 72*50.5*66 72*50.5*66 72*50.5*66

72*50.5*66

Packing Standard carton
Noise 70 dBA/7m 80 dBA/7m 80 dBA/7m 80 dBA/7m 80 dBA/7m

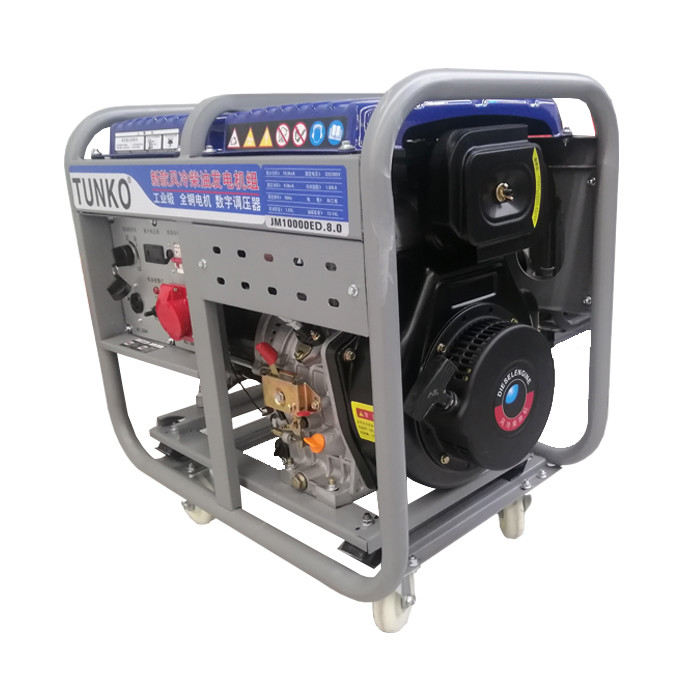

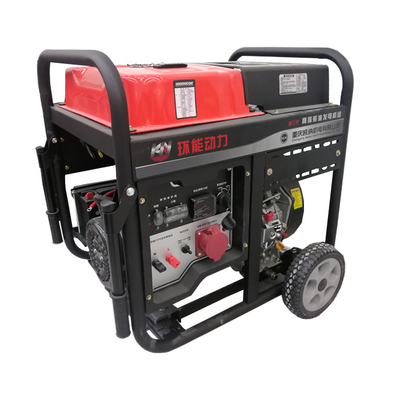

Product picture:





AVR 6kw 3 Phase Silent Diesel Generator Compression Ignition 0AVR 6kw 3 Phase Silent Diesel Generator Compression Ignition 1AVR 6kw 3 Phase Silent Diesel Generator Compression Ignition 2AVR 6kw 3 Phase Silent Diesel Generator Compression Ignition 3AVR 6kw 3 Phase Silent Diesel Generator Compression Ignition 4AVR 6kw 3 Phase Silent Diesel Generator Compression Ignition 5AVR 6kw 3 Phase Silent Diesel Generator Compression Ignition 6AVR 6kw 3 Phase Silent Diesel Generator Compression Ignition 7AVR 6kw 3 Phase Silent Diesel Generator Compression Ignition 8AVR 6kw 3 Phase Silent Diesel Generator Compression Ignition 9AVR 6kw 3 Phase Silent Diesel Generator Compression Ignition 10
