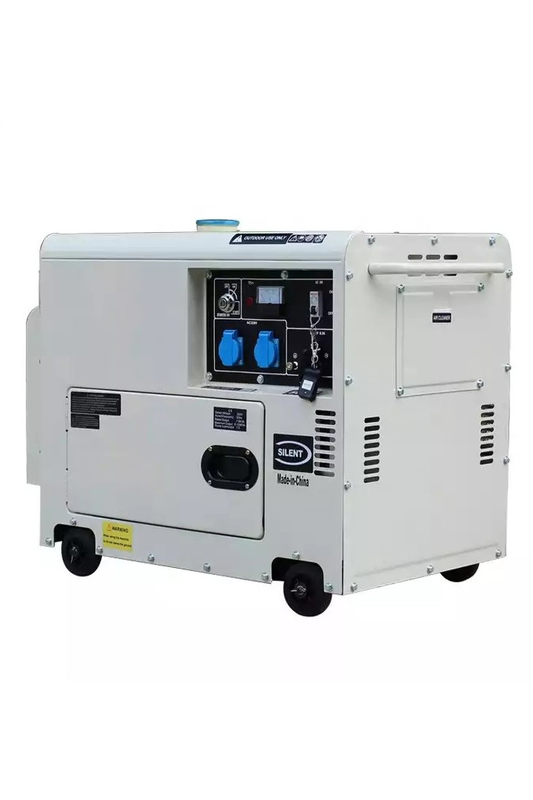

Air Cooled AVR Silent Diesel Generator 30kw

Place of Origin Chongqing, China
Brand Name Huanneng Dongli
Certification CE, ISO9001
Model Number BL-30GF
Minimum Order Quantity 1 set
Price $3923.07-$3999.99set
Packaging Details Standard carton, wooden case
Delivery Time 1-7working days
Payment Terms T/T, L/C, Western Union,etc.
Supply Ability 1000 sets/month
Product Details
Dimensions 150x87x120cm Weight 560.00KG
Noise 75Dba/7m Fuel Tank Capacity 65L
Cooling Method Closed Fan Water Cooling Power Factor Cos 0.8
Maximum Current 43.5A Per Phase Feature Wholesale
High Light

AVR Silent Diesel Generator 30kw

,

30kw V Twin Silent Diesel Generator

,

Air Cooled AVR Silent Diesel Generator

Leave a Message
Product Description

Rated 30kw V Twin Wholesale Cylinder Air-Cooled AVR Silent Diesel Generator

30KW Silent Diesel Generator

THE ADVANTAGE :

- Equipped with safety protection system and large oil tank to ensure long time operation, up to 7 hours continuous operation at rated power.

- Oil protection system, low oil level automatic alarm stop, prevent the engine from working under low oil level, give the engine more protection.

- Adhering to the belief that managers bear special responsibility for the sustainable development of the company



ADD: if you want to know more details, please contact us.



The Details

The unit type BL-15GF BL-20GF BL-30GF
Generator Rated speed 16KW 20KW 30KW
Rated frequency 50hz 50hz 50hz
The rated voltage 230V/400V 230V/400V 400V
Power factor 1.0/0.8 1.0/0.8 0.8
Phase velocity 1 phase 2 lines /3 phase 4 lines 1 phase 2 lines /3 phase 4 lines Three phase four wire
Excitation way Brushless self-propelled magnetic Brushless self-propelled magnetic Brushless self-propelled magnetic
Insulation class H H H
Protection grade IP23 IP23 IP23
engine model Weichai WP2.1 D18E2 Weichai WP2.1 D25E200 Weichai WP2.1 D33E200
One hour power 17.5 KW 23KW 30KW
Rated speed 1500r/min 1500r/min 1500r/min
Start the way DC12V electric motor starts DC12V electric motor starts DC12V electric motor starts
In the form of Straight line, straight spray Straight line, straight spray Straight line, straight spray
Air inlet Naturally aspirated Naturally aspirated Naturally aspirated
stroke 4 4 4
Number of cylinders 4 4 4
Cylinder diameter, stroke 80/90mm 80/90mm 100/115mm
Speed way mechanical mechanical mechanical
Stop the direction mechanical mechanical mechanical
The crankshaft to counterclockwise counterclockwise counterclockwise
The oil brand CD15/40GB11122 CD15/40GB11122 CD15/40GB11122
Fuel consumption rate 200 g/kw or less. H 200 g/kw or less. H 200 g/kw or less. H
Oil consumption rate 1.5 g/kw or less. H 1.5 g/kw or less. H 1.5 g/kw or less. H

Generator sets
Rated power 15KW 18KW 28kw
The rated voltage 230V/400V 230V/400V 400V
Maximum current 69.5 A/each phase 23.2 A A / 87 A 29.0 per phase A 43.5 per phase
Rated frequency 50hz 50hz 50hz
Power factor 1.0/0.8 1.0/0.8 0.8
Cooling way Closed fan water cooled Closed fan water cooled Closed fan water cooled
Fuel tank capacity 65L 65L 65L
The noise 72Dba/7m 72Dba/7m 72Dba/7m
The weight of the 465KG 500KG 560KG
Overall dimensions 1500x870x1200mm 1500x870x1200mm 1500x870x1200mm
