| Place of Origin | Chongqing, China |
| Brand Name | HUAN NENG |
| Certification | CE, ISO 14001, ISO 9001 |
| Model Number | YD10000CS |

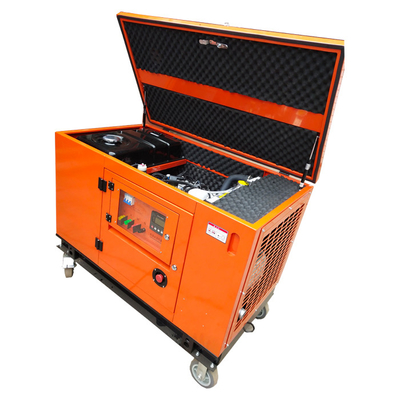

7KW Beautiful Price Standby Power Three-Phases Silent Diesel Generator
Three-phases 7KW Diesel Generator
THE ADVANTAGE :
1. Humanized design concept, integrated panel operation, clear and easy to operate.
2. The wheels move in all directions, and the traction, traction and driving can be carried out at the same time, and the operation is simple. - Reserve ATS automatic call terminals. Power on automatically when left unattended.
3.Uphold the creed that managers have a special responsibility for the company's continued development
ADD: if you want to know more details, please contact us.
| The unit type | BL6500CJ | BL7500CJ | BL10000CJ | |
| Generator | Rated speed | 5KW | 6KW | 7KW |
| Rated frequency | 50hz | 50hz | 50hz | |
| The rated voltage | 230V/400V | 230V/400V | 230V/400V | |
| Power factor | 1.0/0.8 | 1.0/0.8 | 0.8 | |
| Phase velocity | 1/3 phase | 1/3 phase | 1/3 phase | |
| Excitation way | Brushless self-propelled magnetic | Brushless self-propelled magnetic | Brushless self-propelled magnetic | |
| Insulation class | F | F | F | |
| Protection grade | IP23 | IP23 | IP23 | |
| engine | model | 186F | 188F | 192F |
| One hour power | no data | no data | no data | |
| Rated speed | 1500r/min | 1500r/min | 1500r/min | |
| Start the way | DC12V electric motor starts | DC12V electric motor starts | DC12V electric motor starts | |
| In the form of | Straight line, straight spray | Straight line, straight spray | Straight line, straight spray | |
| Air inlet | Naturally aspirated | Naturally aspirated | Naturally aspirated | |
| stroke | 4 | 4 | 4 | |
| Number of cylinders | 1 | 1 | 1 | |
| Cylinder diameter, stroke | 80/90mm | 80/90mm | 100/115mm | |
| Speed way | mechanical | mechanical | mechanical | |
| Stop the direction | mechanical | mechanical | mechanical | |
| The crankshaft to | counterclockwise | counterclockwise | counterclockwise | |
| The oil brand | CD15/40GB11122 | CD15/40GB11122 | CD15/40GB11122 | |
| Fuel consumption rate | 200 g/kw or less. H | 200 g/kw or less. H | 200 g/kw or less. H | |
| Oil consumption rate | 1.5 g/kw or less. H | 1.5 g/kw or less. H | 1.5 g/kw or less. H | |
| Generator sets | Rated power | 5KW | 6KW | 7kw |
| The rated voltage | 230V/400V | 230V/400V | 400V | |
| Maximum current | no data | no data | no data | |
| Rated frequency | 50hz | 50hz | 50hz | |
| Power factor | 1.0/0.8 | 1.0/0.8 | 0.8 | |
| Cooling way | Closed fan water cooled | Closed fan water cooled | Closed fan water cooled | |
| Fuel tank capacity | 1.3 L | 1.5 L | 1.5 L | |
| The noise | 72Dba/7m | 72Dba/7m | 72Dba/7m | |
| The weight of the | 158kg | 160KG | 165KG | |
| Overall dimensions | 1050x610x800mm | 1050x610x800mm | 1050x610x800mm | |
