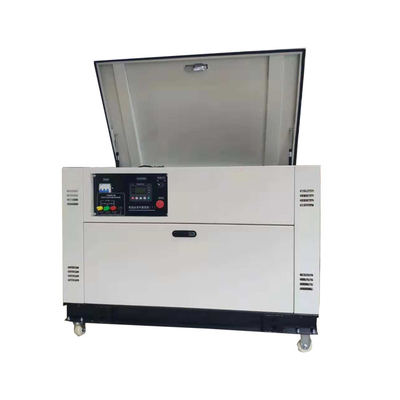

Factory Direct Sale 8KW Silent Electric/Key Start Diesel Generator
Three-phases 8KW Diesel Generator
THE ADVANTAGE :
1. Stronger, more stable, reliable, more powerful commercial V-twin engine with less vibration and less emissions.
2. Wheel in all directions, tow, tow, turn, finish in one go, easy to reach. - Backup ATS automatic telephone connection terminal. It automatically activates in the event of an unattended power outage.
3.Combines modern technology, quality and aesthetics
ADD: if you want to know more details, please contact us.
| The unit type | BL6500CJ | BL7500CJ | BL10000CJ | |
| Generator | Rated speed | 5KW | 6KW | 7KW |
| Rated frequency | 50hz | 50hz | 50hz | |
| The rated voltage | 230V/400V | 230V/400V | 230V/400V | |
| Power factor | 1.0/0.8 | 1.0/0.8 | 0.8 | |
| Phase velocity | 1/3 phase | 1/3 phase | 1/3 phase | |
| Excitation way | Brushless self-propelled magnetic | Brushless self-propelled magnetic | Brushless self-propelled magnetic | |
| Insulation class | F | F | F | |
| Protection grade | IP23 | IP23 | IP23 | |
| engine | model | 186F | 188F | 192F |
| One hour power | no data | no data | no data | |
| Rated speed | 1500r/min | 1500r/min | 1500r/min | |
| Start the way | DC12V electric motor starts | DC12V electric motor starts | DC12V electric motor starts | |
| In the form of | Straight line, straight spray | Straight line, straight spray | Straight line, straight spray | |
| Air inlet | Naturally aspirated | Naturally aspirated | Naturally aspirated | |
| stroke | 4 | 4 | 4 | |
| Number of cylinders | 1 | 1 | 1 | |
| Cylinder diameter, stroke | 80/90mm | 80/90mm | 100/115mm | |
| Speed way | mechanical | mechanical | mechanical | |
| Stop the direction | mechanical | mechanical | mechanical | |
| The crankshaft to | counterclockwise | counterclockwise | counterclockwise | |
| The oil brand | CD15/40GB11122 | CD15/40GB11122 | CD15/40GB11122 | |
| Fuel consumption rate | 200 g/kw or less. H | 200 g/kw or less. H | 200 g/kw or less. H | |
| Oil consumption rate | 1.5 g/kw or less. H | 1.5 g/kw or less. H | 1.5 g/kw or less. H | |
| Generator sets | Rated power | 5KW | 6KW | 7kw |
| The rated voltage | 230V/400V | 230V/400V | 400V | |
| Maximum current | no data | no data | no data | |
| Rated frequency | 50hz | 50hz | 50hz | |
| Power factor | 1.0/0.8 | 1.0/0.8 | 0.8 | |
| Cooling way | Closed fan water cooled | Closed fan water cooled | Closed fan water cooled | |
| Fuel tank capacity | 1.3 L | 1.5 L | 1.5 L | |
| The noise | 72Dba/7m | 72Dba/7m | 72Dba/7m | |
| The weight of the | 158kg | 160KG | 165KG | |
| Overall dimensions | 1050x610x800mm | 1050x610x800mm | 1050x610x800mm | |
