| Place of Origin | Chongqing, China |
| Brand Name | HUAN NENG |
| Certification | CE, ISO 14001, ISO 9001 |
| Model Number | BL-15GF |

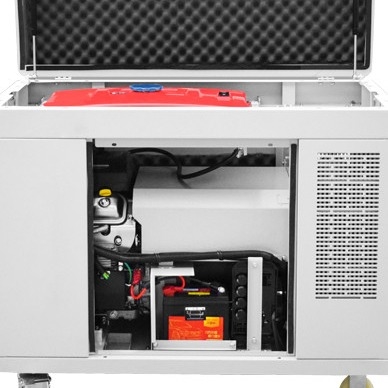

Rated 16000w Environmental Mobile Trailer Big luxruy Silent Diesel Generator
16KW Silent Diesel Generator
THE ADVANTAGE :
1. Long-term cooperation with suppliers
2. Conscious and responsible use of investors' resources
3. We can maintain our long-term success only by maintaining market stability and actively responding to market economic difficulties.
ADD: if you want to know more details, please contact us.
THE DETAILS
| The unit type | BL-15GF | BL-20GF | BL-30GF | |
| Generator | Rated speed | 16KW | 20KW | 30KW |
| Rated frequency | 50hz | 50hz | 50hz | |
| The rated voltage | 230V/400V | 230V/400V | 400V | |
| Power factor | 1.0/0.8 | 1.0/0.8 | 0.8 | |
| Phase velocity | 1 phase 2 lines /3 phase 4 lines | 1 phase 2 lines /3 phase 4 lines | Three phase four wire | |
| Excitation way | Brushless self-propelled magnetic | Brushless self-propelled magnetic | Brushless self-propelled magnetic | |
| Insulation class | H | H | H | |
| Protection grade | IP23 | IP23 | IP23 | |
| engine | model | Weichai WP2.1 D18E2 | Weichai WP2.1 D25E200 | Weichai WP2.1 D33E200 |
| One hour power | 17.5 KW | 23KW | 30KW | |
| Rated speed | 1500r/min | 1500r/min | 1500r/min | |
| Start the way | DC12V electric motor starts | DC12V electric motor starts | DC12V electric motor starts | |
| In the form of | Straight line, straight spray | Straight line, straight spray | Straight line, straight spray | |
| Air inlet | Naturally aspirated | Naturally aspirated | Naturally aspirated | |
| stroke | 4 | 4 | 4 | |
| Number of cylinders | 4 | 4 | 4 | |
| Cylinder diameter, stroke | 80/90mm | 80/90mm | 100/115mm | |
| Speed way | mechanical | mechanical | mechanical | |
| Stop the direction | mechanical | mechanical | mechanical | |
| The crankshaft to | counterclockwise | counterclockwise | counterclockwise | |
| The oil brand | CD15/40GB11122 | CD15/40GB11122 | CD15/40GB11122 | |
| Fuel consumption rate | 200 g/kw or less. H | 200 g/kw or less. H | 200 g/kw or less. H | |
| Oil consumption rate | 1.5 g/kw or less. H | 1.5 g/kw or less. H | 1.5 g/kw or less. H | |
Generator sets |
Rated power | 15KW | 18KW | 28kw |
| The rated voltage | 230V/400V | 230V/400V | 400V | |
| Maximum current | 69.5 A/each phase 23.2 A | A / 87 A 29.0 per phase | A 43.5 per phase | |
| Rated frequency | 50hz | 50hz | 50hz | |
| Power factor | 1.0/0.8 | 1.0/0.8 | 0.8 | |
| Cooling way | Closed fan water cooled | Closed fan water cooled | Closed fan water cooled | |
| Fuel tank capacity | 65L | 65L | 65L | |
| The noise | 72Dba/7m | 72Dba/7m | 72Dba/7m | |
| The weight of the | 465KG | 500KG | 560KG | |
| Overall dimensions | 1500x870x1200mm | 1500x870x1200mm | 1500x870x1200mm | |
