Heavy Duty Frame 3kw Electric Start Petrol Generator 4 Stroke
Place of Origin | Chongqing, China |
---|---|
Brand Name | Huanneng Dongli |
Certification | CE, ISO9001 |
Model Number | KN7000 |
Minimum Order Quantity | 1 set |
Price | $200/set |
Packaging Details | Standard carton, wooden case |
Delivery Time | 1-7 working days |
Payment Terms | T/T, L/C, Western Union, etc. |
Supply Ability | 1000 sets/month |
Product Name | Heavy Duty Frame Electric Start Gasoline Generator | Feature | Heavy Duty Frame Electric Start |
---|---|---|---|
Rated Power | 2.8kw | Max Power | 3kw |
Start Way | Electric Start | Material | Bronze |
Color | Black, Red (as Customer's Requirements) | Voltage | 220V/380V/415V (as Customer's Requirments) |
High Light | Heavy Duty Frame 3kw petrol generator,3kw petrol generator 4 stroke,electric start petrol generator 3kw |
Heavy Duty Frame Electric Start Gasoline Generator
Advantages:
Fuel saving: Excellent combustion efficiency produces extremely high economic benefits.
Serenity: A low-noise generator set that can be used anytime, anywhere.
Reliable: stable automatic voltage regulation system and oil warning system, it is reassuring to use.
Leading the internal combustion engine technology for nearly half a century, its superb technology and rich experience are reflected in each engine, ensuring that each engine has stable performance and reliable operation during long-term operation, thus greatly saving time for maintenance.
Automatic Voltage Regulator (AVR)
The automatic voltage regulator can automatically maintain the voltage stability when the equipment is loaded to ensure stable power supply. This unique design is particularly important for electrical equipment that is sensitive to voltage fluctuations. This is the unique advantage of brushed motors over other generators and requires no maintenance.
Engine Oil Warning System:
When the oil level is too low, the oil warning system automatically stops the engine from running to protect the engine from damage.
Technical parameters:
Model No. | KN1200 | KN2500 | KN2800 | KN3000 | KN3500 | |
Engine | Model | HN156FB | HN68FB | HN168FB | HN170F | HN170F |
Type | Single cylinder, 4-stroke, air-cooled | |||||
Bore x Stroke | 56x40mm | 70x55mm | 70x55mm | 70x55mm | 70x55mm | |
Displacement | 98cm³ | 212cm³ | 212cm³ | 212cm³ | 212cm³ | |
Max.output power | 3.5/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | |
Ignition system | TCL | |||||
Starting system | Recoil/Electric | |||||
Fuel tank capacity | 8 liters | 15 liters | 15 liters | 15 liters | 15 liters | |
Continuous operating time | 11 hours | 10 hours | 10 hours | 10 hours | 10 hours | |
Oil capacity | 0.35 liters | 0.6 liters | 0.6 liters | 0.6 liters | 0.6 liters | |
Generator | Rated voltage | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V |
Rated frequency | 60/50Hz | 60/50Hz | 60/50Hz | 60/50Hz | 60/50Hz | |
Rated output power | 1000W | 2000W | 2300W | 2500W | 2800W | |
Max.output power | 1100W | 2200W | 2500W | 2800W | 3000W | |
Packing | N.W | 30Kgs | 39Kgs | 41Kgs | 42Kgs | 44Kgs |
G.W | 31Kgs | 40Kgs | 42Kgs | 43Kgs | 45Kgs | |
Carton size | 50x39x43cm | 61x45x47cm | 61x45x47cm | 61x45x47cm | 61x45x47cm | |
Container Loading | 20’ | 330pcs | 240pcs | 240pcs | 240pcs | 240pcs |
40’HQ | 852pcs | 490pcs | 490pcs | 490pcs | 490pcs |

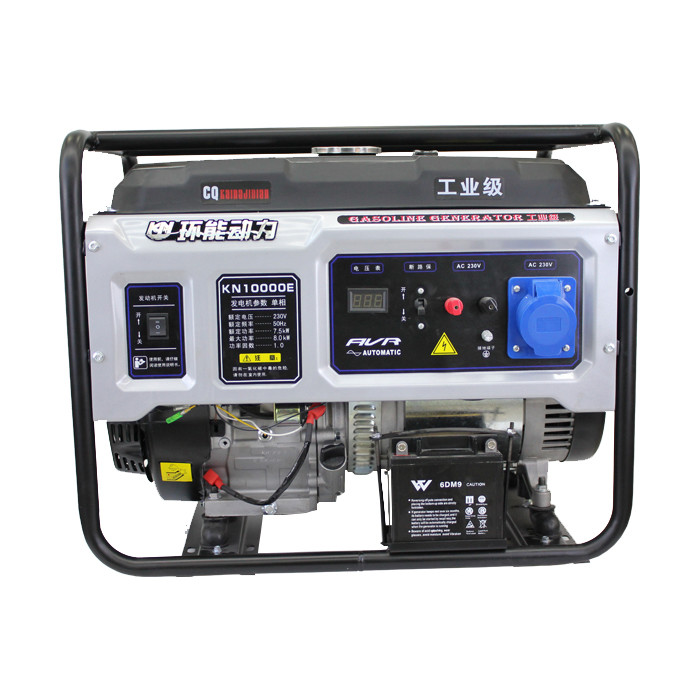

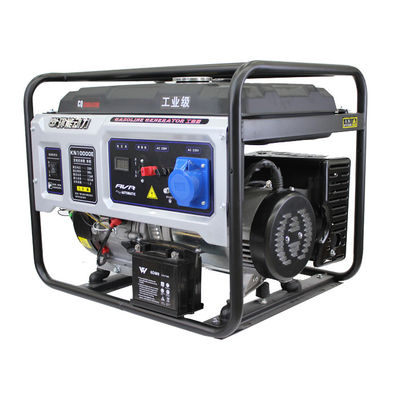

Product pictures:
