| Place of Origin | Chongqing, China |
| Brand Name | HUAN NENG |
| Certification | CE, ISO 14001, ISO 9001 |
| Model Number | KN3500/D |
3KW Manual Start Quiet Car-Friendly Portable Gasoline Generator
3KW Manual Start Portable Gasoline Generator
Features:
With strong 4-stroke engine
1. Dual voltage, same power.
2. The price of one machine and the functions of two machines.
3. One machine for two purposes, saving money and effort.
4. Reliable quality and durable.
5. Full frame protection for easy transport and portability
6. Compact and lightweight, portable power supply for recreational, emergency and home use
7. Economical and low fuel consumption for continuous and stable operation .
8. Brushless alternator and electronic ignition device, easy to maintain.
9. Voltmeter as standard for ease of use.
10. AC/DC circuit breakers ensure safety for overload and shock circuit protection.
Technical parameters:
| Model No. | KN1200 | KN2500 | KN2800 | KN3000 | KN3500 | |
| Engine | Model | HN156FB | HN68FB | HN168FB | HN170F | HN170F |
| Type | Single cylinder, 4-stroke, air-cooled | |||||
| Bore x Stroke | 56x40mm | 70x55mm | 70x55mm | 70x55mm | 70x55mm | |
| Displacement | 98cm³ | 212cm³ | 212cm³ | 212cm³ | 212cm³ | |
| Max.output power | 3.5/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | |
| Ignition system | TCL | |||||
| Starting system | Recoil/Electric | |||||
| Fuel tank capacity | 8 liters | 15 liters | 15 liters | 15 liters | 15 liters | |
| Continuous operating time | 11 hours | 10 hours | 10 hours | 10 hours | 10 hours | |
| Oil capacity | 0.35 liters | 0.6 liters | 0.6 liters | 0.6 liters | 0.6 liters | |
| Generator | Rated voltage | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V |
| Rated frequency | 60/50Hz | 60/50Hz | 60/50Hz | 60/50Hz | 60/50Hz | |
| Rated output power | 1000W | 2000W | 2300W | 2500W | 2800W | |
| Max.output power | 1100W | 2200W | 2500W | 2800W | 3000W | |
| Packing | N.W | 30Kgs | 39Kgs | 41Kgs | 42Kgs | 44Kgs |
| G.W | 31Kgs | 40Kgs | 42Kgs | 43Kgs | 45Kgs | |
| Carton size | 50x39x43cm | 61x45x47cm | 61x45x47cm | 61x45x47cm | 61x45x47cm | |
| Container Loading | 20’ | 330pcs | 240pcs | 240pcs | 240pcs | 240pcs |
| 40’HQ | 852pcs | 490pcs | 490pcs | 490pcs | 490pcs | |

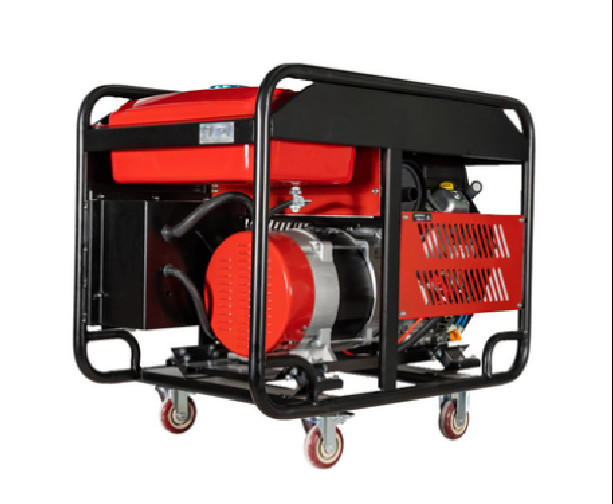

Product pictures:
