Box Type Silent Generators
>
|
| Place of Origin | Chongqing, China |
| Brand Name | HUAN NENG |
| Certification | CE, ISO 14001, ISO 9001 |
| Model Number | YD10000E |

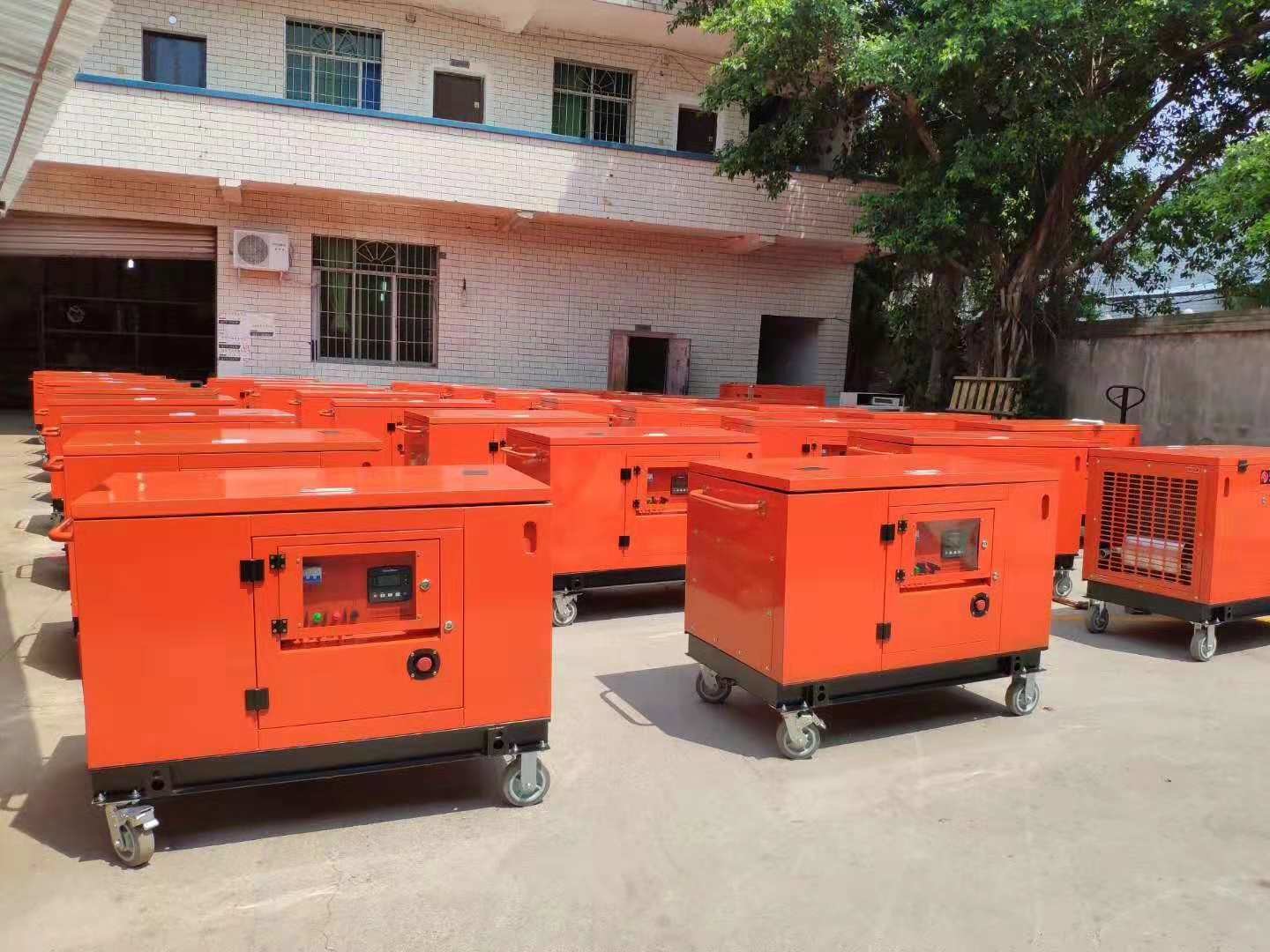

8K Quiet Gasoline Generator Municipal Engineering Can Be Vehicle Mounted
Equal power 8KW Gasoline Generator
THE ADVANTAGE :
1. Humanized design concept, integrated panel operation, the most concise operating system is clear and easy to operate.
2.We have oil protection system, low oil level automatic alarm stop, protect your safety, prevent the engine from running at low oil level, while providing greater protection for the engine, so that you do not have to worry about.
ADD: if you want to know more details, please contact us.
| Unit Type | YD6600E | YD7600E | YD10000E |
| Excitation method | AVR | AVR | AVR |
| maximum output power | 6.0KW | 7.0KW | 8.5KW |
| Rated output power | 5.0KW | 6.5KW | 8.0KW |
| Rated voltage | 230/400V | 230/400V | 230/400V |
| Maximum current | 26.0A | 30.4A | 37.0A |
| Rated frequency | 50hz | 50hz | 50hz |
| Phase | single phase/three phase | single phase/three phase | single phase/three phase |
| power factor cose | 1.0/0.8 | 1.0/0.8 | 1.0/0.8 |
| Insulation class | F | F | F |
| Guide model | 190F | 190F | 190F |
| Bore X Stroke | 90x66mm | 90x66mm | 90x66mm |
| Displacement | 420cc | 420cc | 420cc |
| fuel consumption rate | W374g/KW.h | W374g/KW.h | W374g/KW.h |
| ignition method | transistor electronic ignition | transistor electronic ignition | transistor electronic ignition |
| engine type | Single cylinder, four stroke, forced air cooling, overhead valve | Single cylinder, four stroke, forced air cooling, overhead valve | Single cylinder, four stroke, forced air cooling, overhead valve |
| fuel type | 90# or more gasoline | 90# or more gasoline | 90# or more gasoline |
| oil quantity | 1.1L | 1.1L | 1.1L |
| Start method | Hand start/electric start | Hand start/electric start | Hand start/electric start |
| fuel capacity | 20L | 20L | 20L |
| oil alarm | Have | Have | Have |
| fuel indicator | Have | Have | Have |
| control panel | other | other | other |
| Caster attachment | Standard | Standard | Standard |
| noise | 68Dba/7m | 68Dba/7m | 68Dba/7m |
| Continuous working time | 8h | 8h | 8h |
| Unit size | 1050x590x800mm | 1050x590x800mm | 1050x590x800mm |
| weight | 145kg | 148kg | 156kg |
