Variable Frequency TCL 10000 Watt Portable Gasoline Generator 4 Stroke

Place of Origin Chongqing, China
Brand Name Huanneng Dongli
Certification CE, ISO9001
Model Number KN12000-DT
Minimum Order Quantity 1 set
Price $150-$500/set
Packaging Details Standard carton, wooden case
Delivery Time 1-7 working days
Payment Terms T/T, L/C, Western Union, etc.
Supply Ability 1000 sets/month
Product Details
Product Name Air Cooled Portable Gasoline Generator Material Bronze
Color Black, Red (as Customer's Requirements) Power 10kw
Start Way Electric Start/manual Start Oem Available,Accepted
Feature Variable Frequency Feature2 Four-Stroke
High Light

TCL Portable Gasoline Generator

,

Variable Frequency 10000 watt gasoline generator

,

10000 watt gasoline generator 4 Stroke

Leave a Message
Product Description

10kw Four-Stroke wind Cold Variable Frequency Outdoor 220V Gasoline Generator

4 Stroke Air Cooled Portable Gasoline Generator 10kw





Features:



1. Powerful, stable, durable and reliable.

2. Easy and fast starting, smooth operation and low vibration.

3. Advanced design combustion chamber provides exceptional fuel efficiency and consistent power.

4. Heavy duty frame, unique design of anti vibration and low running temperature prolongs the generator life.



NOTE


* Altitude: 0m
* Ambient temperature: 25℃
* Relative humidity: 30%



Technical parameters:



Model No. KN1200 KN2500 KN2800 KN3000 KN3500
Engine Model HN156FB HN68FB HN168FB HN170F HN170F
Type Single cylinder, 4-stroke, air-cooled
Bore x Stroke 56x40mm 70x55mm 70x55mm 70x55mm 70x55mm
Displacement 98cm³ 212cm³ 212cm³ 212cm³ 212cm³
Max.output power 3.5/3600 Hp/rpm 7.0/3600 Hp/rpm 7.0/3600 Hp/rpm 7.0/3600 Hp/rpm 7.0/3600 Hp/rpm
Ignition system TCL
Starting system Recoil/Electric
Fuel tank capacity 8 liters 15 liters 15 liters 15 liters 15 liters
Continuous operating time 11 hours 10 hours 10 hours 10 hours 10 hours
Oil capacity 0.35 liters 0.6 liters 0.6 liters 0.6 liters 0.6 liters
Generator Rated voltage 110/220V 110/220V 110/220V 110/220V 110/220V
Rated frequency 60/50Hz 60/50Hz 60/50Hz 60/50Hz 60/50Hz
Rated output power 1000W 2000W 2300W 2500W 2800W
Max.output power 1100W 2200W 2500W 2800W 3000W
Packing N.W 30Kgs 39Kgs 41Kgs 42Kgs 44Kgs
G.W 31Kgs 40Kgs 42Kgs 43Kgs 45Kgs
Carton size 50x39x43cm 61x45x47cm 61x45x47cm 61x45x47cm 61x45x47cm
Container Loading 20’ 330pcs 240pcs 240pcs 240pcs 240pcs
40’HQ 852pcs 490pcs 490pcs 490pcs 490pcs

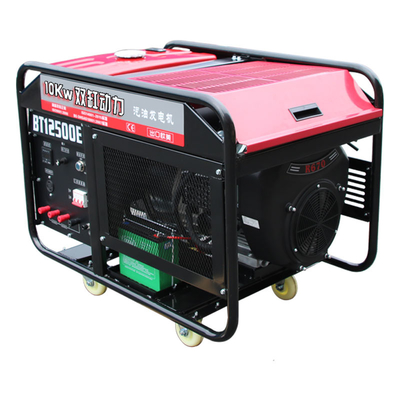

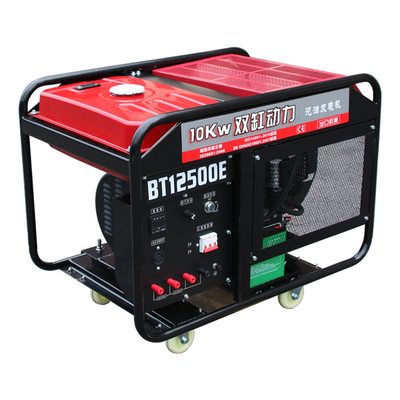

Product pictures:

Variable Frequency TCL 10000 Watt Portable Gasoline Generator 4 Stroke 0Variable Frequency TCL 10000 Watt Portable Gasoline Generator 4 Stroke 1Variable Frequency TCL 10000 Watt Portable Gasoline Generator 4 Stroke 2Variable Frequency TCL 10000 Watt Portable Gasoline Generator 4 Stroke 3Variable Frequency TCL 10000 Watt Portable Gasoline Generator 4 Stroke 4Variable Frequency TCL 10000 Watt Portable Gasoline Generator 4 Stroke 5Variable Frequency TCL 10000 Watt Portable Gasoline Generator 4 Stroke 6Variable Frequency TCL 10000 Watt Portable Gasoline Generator 4 Stroke 7Variable Frequency TCL 10000 Watt Portable Gasoline Generator 4 Stroke 8Variable Frequency TCL 10000 Watt Portable Gasoline Generator 4 Stroke 9Variable Frequency TCL 10000 Watt Portable Gasoline Generator 4 Stroke 10Variable Frequency TCL 10000 Watt Portable Gasoline Generator 4 Stroke 11
