Portable Gasoline Generator
>
|
| Place of Origin | Chongqing, China |
| Brand Name | HUAN NENG |
| Certification | CE, ISO 14001, ISO 9001 |
| Model Number | KN3500/F |
Electric /Manual Start Four Stroke Mini Gasoline Generator 3KW
Product name:Electric Start Four Stroke Gasoline Generator
A sincere message from the seller:
Our machines are easier to start. And has overload protection, safe operation which has a solid muffler, which can effectively reduce noise. And the waterproof protection of the OFF/ON switch is an excellent little assistant in your life. With full frame protection, extremely easy to transport and carry, a teen can easily pick it up and carry it away, our machine is compact and lightweight, a portable power source for recreational, emergency and home use, backup Power supply, emergency power supply, all in all it will come in handy anytime you are out of power, I think you will love it.
Technical parameters:
| Model No. | KN1200 | KN2500 | KN2800 | KN3000 | KN3500 | |
| Engine | Model | HN156FB | HN68FB | HN168FB | HN170F | HN170F |
| Type | Single cylinder, 4-stroke, air-cooled | |||||
| Bore x Stroke | 56x40mm | 70x55mm | 70x55mm | 70x55mm | 70x55mm | |
| Displacement | 98cm³ | 212cm³ | 212cm³ | 212cm³ | 212cm³ | |
| Max.output power | 3.5/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | |
| Ignition system | TCL | |||||
| Starting system | Recoil/Electric | |||||
| Fuel tank capacity | 8 liters | 15 liters | 15 liters | 15 liters | 15 liters | |
| Continuous operating time | 11 hours | 10 hours | 10 hours | 10 hours | 10 hours | |
| Oil capacity | 0.35 liters | 0.6 liters | 0.6 liters | 0.6 liters | 0.6 liters | |
| Generator | Rated voltage | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V |
| Rated frequency | 60/50Hz | 60/50Hz | 60/50Hz | 60/50Hz | 60/50Hz | |
| Rated output power | 1000W | 2000W | 2300W | 2500W | 2800W | |
| Max.output power | 1100W | 2200W | 2500W | 2800W | 3000W | |
| Packing | N.W | 30Kgs | 39Kgs | 41Kgs | 42Kgs | 44Kgs |
| G.W | 31Kgs | 40Kgs | 42Kgs | 43Kgs | 45Kgs | |
| Carton size | 50x39x43cm | 61x45x47cm | 61x45x47cm | 61x45x47cm | 61x45x47cm | |
| Container Loading | 20’ | 330pcs | 240pcs | 240pcs | 240pcs | 240pcs |
| 40’HQ | 852pcs | 490pcs | 490pcs | 490pcs | 490pcs | |

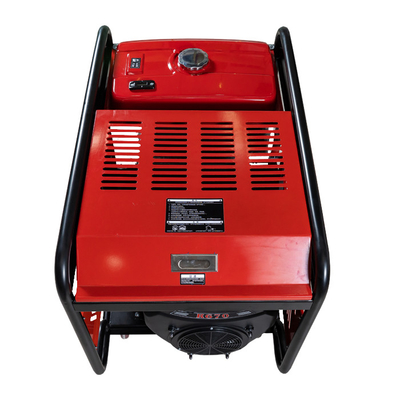

Product pictures:
