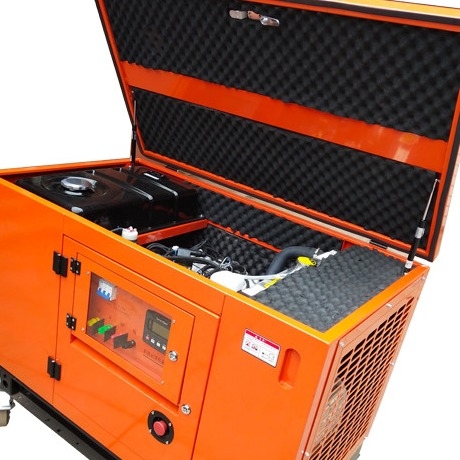

Environmental 420cc Single Phase 5kw Petrol Generator 3600RPM
  • Environmental 420cc Single Phase 5kw Petrol Generator 3600RPM
  • Environmental 420cc Single Phase 5kw Petrol Generator 3600RPM
  • Environmental 420cc Single Phase 5kw Petrol Generator 3600RPM
  • Environmental 420cc Single Phase 5kw Petrol Generator 3600RPM
  • Environmental 420cc Single Phase 5kw Petrol Generator 3600RPM

Environmental 420cc Single Phase 5kw Petrol Generator 3600RPM

Place of Origin Chongqing, China
Brand Name HUAN NENG
Certification CE, ISO 14001, ISO 9001
Model Number YD7600/D
Product Details
Feature:
Green Environmental Protection
Frequency:
50HZ Or 60HZ
Speed:
3000/3600RPM
Rated Current:
2A To 55A
Warranty:
One Year Warranty
Color:
Customers' Requirement
High Light:

5kw single phase generator 3600RPM

,

420cc 5kw single phase generator

,

5kw petrol generator 3600RPM

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Carton box packing for each set
Delivery Time
7-15 work days
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
20000 sets per month
Product Description

 6KW Hand-Start/Electric-Start Green Environmental Protection Gasoline Generator

Single-Phase 6KW GASOLINE Generator

THE ADVANTAGE :

1. Well-designed commercial high output generator, covering 110-415V, single-phase/three-phase, minimizing maintenance and service costs, helping you not only save fuel, but also save extra expenses.

2.We have oil protection system, low oil level automatic alarm stop, protect your safety, prevent the engine from running at low oil level, while providing greater protection for the engine, so that you do not have to worry about.

ADD: if you want to know more details, please contact us.

Unit Type YD6600E YD7600E YD10000E
Excitation method AVR AVR AVR
maximum output power 6.0KW 7.0KW 8.5KW
Rated output power 5.0KW 6.5KW 8.0KW
Rated voltage 230/400V 230/400V 230/400V
Maximum current 26.0A 30.4A 37.0A
Rated frequency 50hz 50hz 50hz
Phase single phase/three phase single phase/three phase single phase/three phase
power factor cose 1.0/0.8 1.0/0.8 1.0/0.8
Insulation class F F F
Guide model 190F 190F 190F
Bore X Stroke 90x66mm 90x66mm 90x66mm
Displacement 420cc 420cc 420cc
fuel consumption rate W374g/KW.h W374g/KW.h W374g/KW.h
ignition method transistor electronic ignition transistor electronic ignition transistor electronic ignition
engine type Single cylinder, four stroke, forced air cooling, overhead valve Single cylinder, four stroke, forced air cooling, overhead valve Single cylinder, four stroke, forced air cooling, overhead valve
fuel type 90# or more gasoline 90# or more gasoline 90# or more gasoline
oil quantity 1.1L 1.1L 1.1L
Start method Hand start/electric start Hand start/electric start Hand start/electric start
fuel capacity 20L 20L 20L
oil alarm Have Have Have
fuel indicator Have Have Have
control panel other other other
Caster attachment Standard Standard Standard
noise 68Dba/7m 68Dba/7m 68Dba/7m
Continuous working time 8h 8h 8h
Unit size 1050x590x800mm 1050x590x800mm 1050x590x800mm
weight 145kg 148kg 156kg

Environmental 420cc Single Phase 5kw Petrol Generator 3600RPM 0Environmental 420cc Single Phase 5kw Petrol Generator 3600RPM 1Environmental 420cc Single Phase 5kw Petrol Generator 3600RPM 2Environmental 420cc Single Phase 5kw Petrol Generator 3600RPM 3Environmental 420cc Single Phase 5kw Petrol Generator 3600RPM 4Environmental 420cc Single Phase 5kw Petrol Generator 3600RPM 5Environmental 420cc Single Phase 5kw Petrol Generator 3600RPM 6Environmental 420cc Single Phase 5kw Petrol Generator 3600RPM 7
