Box Type Silent Generators
>
|
| Place of Origin | Chongqing, China |
| Brand Name | HUAN NENG |
| Certification | CE, ISO 14001, ISO 9001 |
| Model Number | YD15000SE |

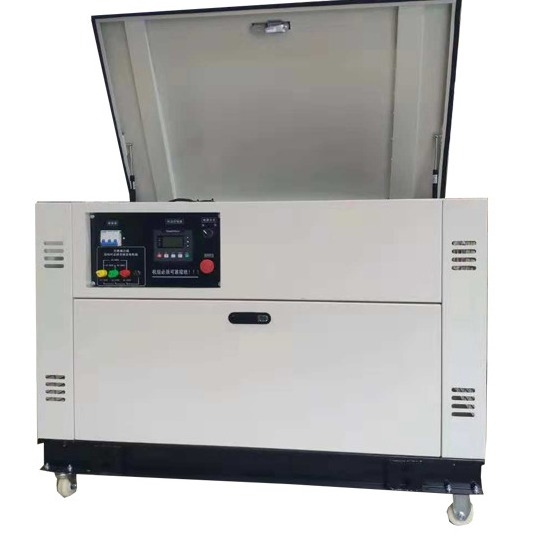

13KW Double-Cylinder Equivalent Power 2V80 Engine Gasoline Generator
Equal power 13KW Gasoline Generator
THE ADVANTAGE :
1. We have a full range of moving wheels, towing, dragging and turning can be done at once and easily. -Pre-positioned ATS automatic wiring terminal. It can automatically start the power supply when unattended, providing you with unprecedented convenience in no worries.
2. Specially developed better short-circuit protection system, safe, reliable and more effective, top in China, top in the world.
ADD: if you want to know more details, please contact us.
| dynamo | Unit Type | BL15000CJ | |
| Excitation method | AVR voltage automatic adjustment | ||
| maximum output power | 13KW | ||
| Rated output power | 13.5KW | ||
| Rated voltage | 230V | 230V/400V | |
| Maximum current | 47.8A | 15.9A per phase | |
| Rated frequency | 50HZ | ||
| Phase | single phase | three phase | |
| power factor cos | 1.00 | 0.8 | |
| Insulation class | F级 | ||
| engine | engine model | R670 | |
| Rigid x stroke | 78x70mm | ||
| Displacement | 670cc | ||
| fuel consumption rate | ≤374g/KW.h | ||
| ignition method | compression ignition | ||
| engine type | V-twin/in-line twin, four-stroke, water-cooled, direct injection | ||
| fuel type | Diesel: 90#↑ | ||
| oil quantity | 1.5 L | ||
| Start method | Electric start | ||
| Attachment configuration | fuel capacity | 25L | |
| battery capacity | 12V-32AH maintenance-free battery | ||
| oil alarm | yes | ||
| fuel indicator | yes | ||
| control panel | digital display | ||
| Caster attachment | Standard | ||
| other | noise | 70Dba/7m | |
| Continuous working time | 8h | ||
| Dimensions | 1140*655*930 | ||
| weight | 210KG | ||
