4 Stroke Gasoline Engine
>
|
| Place of Origin | Chongqing, China |
| Brand Name | HUAN NENG |
| Certification | CE, ISO 14001, ISO 9001 |
| Model Number | HP168FB/P |

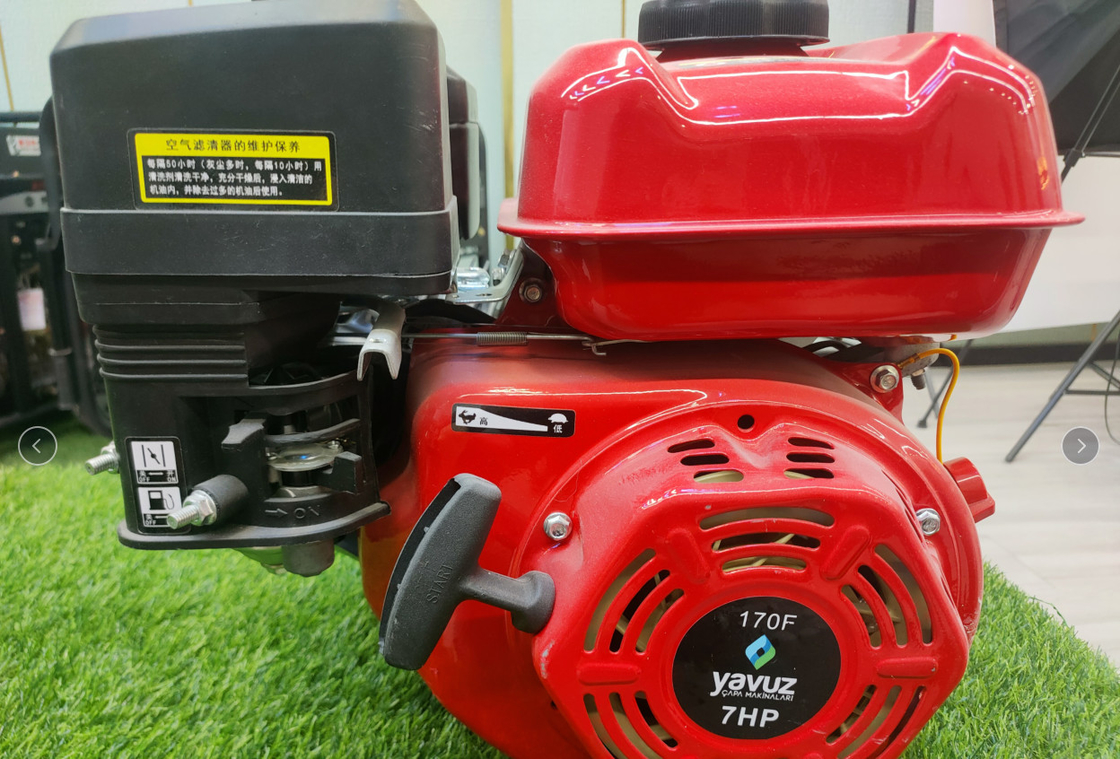

Max 3.8KW Four-Stroke Non-Contact Green Environmental Gasoline Engine
4 stroke gasoline engine
Advantage,
1. Our engines have a number of patents, high product performance, and cooperate with domestic and foreign institutions of higher learning
2. High-end positioning, high-quality components, and technologically advanced raw materials of NSK and Wafer Group
3. Lightweight design, compact effect, high output power in the same volume, can meet a variety of applications
The Details of this diesel engine
| Model | 152F/P | 154F/P | 168FA/P | 168FB/P | 170F/P | 173F/P | 177F/P | 182FA/P | 188F/P | 190F/P |
| Form | Single cylinder, four stroke, forced air cooling | |||||||||
| Lgnilion mode | Contactless transistor electronic ignition | |||||||||
| Starting mode | Recovery manual start | |||||||||
| (g/kw-h) Fuel consumption (g/kW-h) | w450 | W420 | <395 | w395 | w374 | w374 | W374 | W374 | W374 | w374 |
| (mm ) Bore / stroke (mm) | 52x46 | 54x38 | 68x45 | 68x45 | 70x45 | 73x58 | 77x58 | 82x64 | 88x64 | 90x66 |
| (ml) Piston displacement (ML) | 98 | 87 | 163 | 196 | 215 | 242 | 270 | 338 | 389 | 420 |
| (Kw/rpm) Maxirmim pov/er/speed | 1.15/3600 | 1.15/3600 | 3.2/3600 | 3.8/3600 | 4.0/3600 | 4.2/3600 | 4.6/3600 | 6.1/3600 | 7.2/3600 | 8.1/3600 |
| (N-m/rpm) " | 2.5/2600 | 3.0/2600 | 8.8/2600 | 10.2/2600 | 12/2600 | 13/2600 | 14/2600 | 19/2500 | 21/2500 | 23/2500 |
| Net weight (kg) | 8.8 | 10 | 18 | 18 | 18 | 25 | 25 | 31 | 31 | 32 |
| mm] Boun^r^in^nsion [mm](L xWx H) | 280x270x345 | 280x270x345 | 350x315x335 | 350x315x335 | 350x315x335 | 495x430x505 | 495x430x505 | 495x430x505 | 495x430x505 | 495x430x505 |
