4 Stroke Gasoline Engine
>
|
| Place of Origin | Chongqing, China |
| Brand Name | HUAN NENG |
| Certification | CE, ISO 14001, ISO 9001 |
| Model Number | HP190F/P |

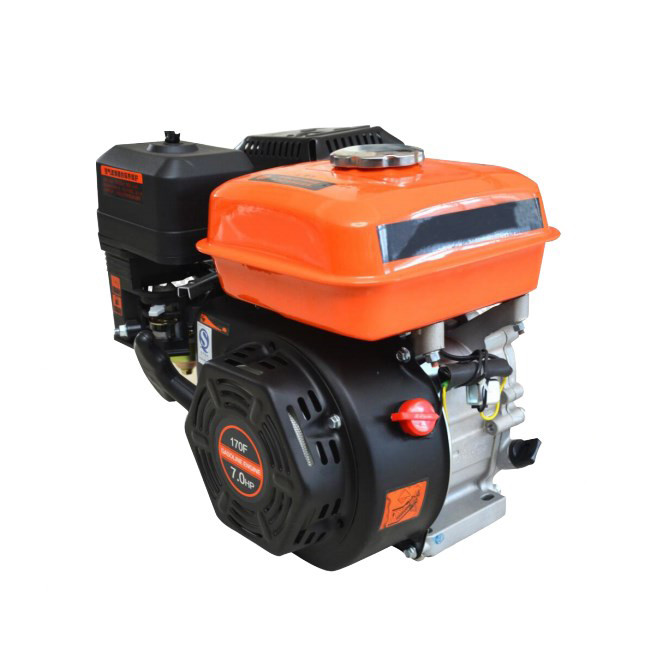

Factory Direct Sales Low Price Maximum Power 8.1KW Gasoline Engine
4 stroke gasoline engine
Advantage,
1. Our engines have a number of patents, high product performance, and cooperate with domestic and foreign institutions of higher learning
2. Lightweight design, compact effect, high output power in the same volume, can meet a variety of applications
3. Perfect fuel injection technology, our self-developed fuel injection system can ensure that every drop of oil can exert its maximum effect, making the fuel consumption rate reach the most ideal level.
The Details of this diesel engine
| Model | HN173FB | HN178F | HN186FA | HN188FA | HN192F | HN195F |
| type | ||||||
| Combustion system | ||||||
| The cylinder diameter x Trip | 73x59 | 78x62 | 86x72 | 88x75 | 92x75 | 95x75 |
| Displacement | 0.247 | 0.296 | 0.418 | 0.45€ | 0.499 | 0.532 |
| Compression Ratio | 20:1 | 20:1 | 19:1 | 20:1 | 19:1 | 19:1 |
| (Kw/rpm ) Rated Power/speed | 3.2/3000,3.6/3600 | 3.7/3000.4.0/3600 | 5.8/3000,6.6/3600 | 6.6/3000.7.5/3600 | 7.5/3000,8.2/3600 | 8.5/3000,9.2/3600 |
| (Hp/rpm ) Max Power/Speed | 4.3/3000,4.8/3600 | 5.0/3000,5.5/3600 | 7.9/3000,9.0/3600 | 9.0/3000,10.2/3600 | 10.2/3000,11.2/3600 | 10.2/3000,11.2/3600 |
| Rated Speed | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 |
| Start The Way | F: Manual start e: electric start | |||||
| Tank Volume | 2.5 | 3.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| (L ) Lubricating Oil Capacity | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 |
| (L/H) Fuel Consumption | w1.2 | W1.41 | W2.15 | w2 | w2 | w2 |
| Fuel Brand | Diesel: 0 x 10 (summer), - 10 x 10 (winter) | |||||
| Lubncating Oil Brand | Sae10w30 (above CD level) | |||||
| LXWXH ( mm ) Dimensions | 332x376x415 | 385x420x450 | 420x440x495 | 420x440x495 | 420x440x495 | 420x440x495 |
| The Net Weight | 38 Manual start: 28 Manual start: 33 Electric start: 32 Electric start: 38 | 53 Manual start: 47 Manual start: 48 Electric start: 53 Electric start: 53 | Manual start: 50 Electric start: 55 | Manual start: 50 Electric start: 55 | ||
