4 Stroke Gasoline Engine
>
|
| Place of Origin | Chongqing, China |
| Brand Name | HUAN NENG |
| Certification | CE, ISO 14001, ISO 9001 |
| Model Number | HP170F/P |

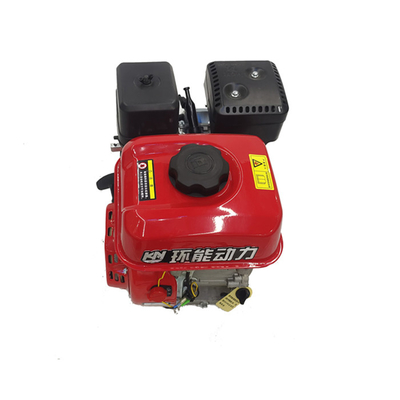

Max 4.0KW Factory Wholesale Powerful Easy Start Gasoline Engine
4 stroke gasoline engine
Advantage,
1. Lightweight design, compact effect, high output power in the same volume, can meet a variety of applications
2. Process innovation, long service life, we continue to innovate in process details, high strength, low vibration, good wear resistance, make the engine run more smoothly.
3. Simple maintenance, low operating temperature, low operating cost, long machine life, high combustion efficiency, low fuel consumption, high torque and strong power
The Details of this diesel engine
| Model | 152F/P | 154F/P | 168FA/P | 168FB/P | 170F/P | 173F/P | 177F/P | 182FA/P | 188F/P | 190F/P |
| Form | Single cylinder, four stroke, forced air cooling | |||||||||
| Lgnilion mode | Contactless transistor electronic ignition | |||||||||
| Starting mode | Recovery manual start | |||||||||
| (g/kw-h) Fuel consumption (g/kW-h) | w450 | W420 | <395 | w395 | w374 | w374 | W374 | W374 | W374 | w374 |
| (mm ) Bore / stroke (mm) | 52x46 | 54x38 | 68x45 | 68x45 | 70x45 | 73x58 | 77x58 | 82x64 | 88x64 | 90x66 |
| (ml) Piston displacement (ML) | 98 | 87 | 163 | 196 | 215 | 242 | 270 | 338 | 389 | 420 |
| (Kw/rpm) Maxirmim pov/er/speed | 1.15/3600 | 1.15/3600 | 3.2/3600 | 3.8/3600 | 4.0/3600 | 4.2/3600 | 4.6/3600 | 6.1/3600 | 7.2/3600 | 8.1/3600 |
| (N-m/rpm) | 2.5/2600 | 3.0/2600 | 8.8/2600 | 10.2/2600 | 12/2600 | 13/2600 | 14/2600 | 19/2500 | 21/2500 | 23/2500 |
| )Net weight (kg) | 8.8 | 10 | 18 | 18 | 18 | 25 | 25 | 31 | 31 | 32 |
| [mm] Boun^r^in^nsion [mm](L xWx H) | 280x270x345 | 280x270x345 | 350x315x335 | 350x315x335 | 350x315x335 | 495x430x505 | 495x430x505 | 495x430x505 | 495x430x505 | 495x430x505 |
