4 Stroke Gasoline Engine
>
|
| Place of Origin | Chongqing, China |
| Brand Name | HUAN NENG |
| Certification | CE, ISO 14001, ISO 9001 |
| Model Number | 170FP |
4000w Single Cylinder Four Stroke Gasoline Engine Easily Operate Use
Single Cylinder Four Stroke Gasoline Engine
Application:
Gasoline engines use gasoline as fuel to convert internal energy into kinetic energy. Because gasoline is viscous and evaporates quickly, gasoline can be injected into the cylinder with a gasoline injection system. After compression reaches a certain temperature and pressure, it is ignited with a spark plug to make the gas expand to do work. The gasoline engine is characterized by high speed, simple structure, light weight, low cost, stable operation, and convenient use and maintenance. Gasoline engines are widely used in automobiles, especially small cars.
Features:
Technical parameters:
| Model | 152F/P | 154F/P | 168FA/P | 168FB/P | 170F/P |
| Form | Single cylinder, four stroke, forced air cooling | ||||
| Lgnition mode | Contactless transistor electronic ignition | ||||
| Starting mode | Recovery manual start | ||||
| Fuel consumption (g/kw.h) | ≤450 | ≤420 | ≤395 | ≤395 | ≤374 |
| Bore/stroke (mm) | 52x46 | 54x38 | 68x45 | 68x45 | 70x45 |
| Piston displacement (ml) | 98 | 87 | 163 | 196 | 215 |
| Maximum power/speed (kw/rpm) | 1.15/3600 | 1.15/3600 | 3.2/3600 | 3.8/3600 | 4.0/3600 |
| Maximum torgue (N.m/rpm) | 2.5/2600 | 3.0/2600 | 8.8/2600 | 10.2/2600 | 12/2600 |
| Net weight (kg) | 8.8 | 10 | 18 | 18 | 18 |
| Dimension[mm](LxWxH) | 280x270x345 | 280x270x345 | 350x315x335 | 350x315x335 | 350x315x335 |
| Model | 173F/P | 177F/P | 182FA/P | 188F/P | 190F/P |
| Form | Single cylinder, four stroke, forced air cooling | ||||
| Lgnition mode | Contactless transistor electronic ignition | ||||
| Starting mode | Recovery manual start | ||||
| Fuel consumption (g/kw.h) | ≤374 | ≤374 | ≤374 | ≤374 | ≤374 |
| Bore/stroke (mm) | 52x46 | 54x38 | 68x45 | 68x45 | 70x45 |
| Piston displacement (ml) | 242 | 270 | 338 | 389 | 420 |
| Maximum power/speed (kw/rpm) | 4.2/3600 | 4.6/3600 | 6.1/3600 | 7.2/3600 | 8.1/3600 |
| Maximum torgue (N.m/rpm) | 13/2600 | 14/2600 | 19/2600 | 21/2600 | 23/2600 |
| Net weight (kg) | 25 | 25 | 31 | 31 | 32 |
| Dimension[mm](LxWxH) | 495x430x505 | 495x430x505 | 495x430x505 | 495x430x505 | 495x430x505 |

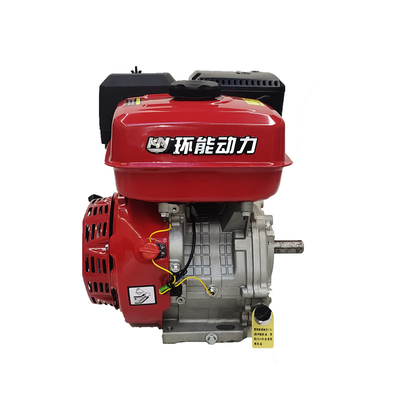

Product pictures:
