4 Stroke Gasoline Engine
>
|
| Place of Origin | Chongqing, China |
| Brand Name | HUAN NENG |
| Certification | CE, ISO 14001, ISO 9001 |
| Model Number | HP168FA/P |

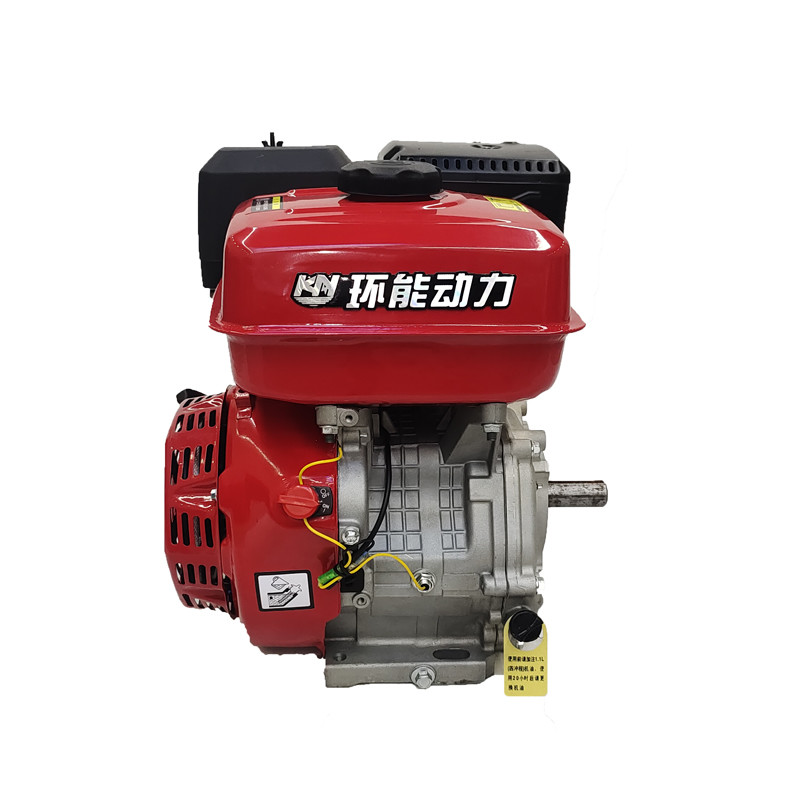

Max 3.2KW Single-Cylinder Four-Stroke Energy Saving Gasoline Engine
4 stroke gasoline engine
Advantage,
1. Easy maintenance, low operating temperature, low operating cost, long engine life, high combustion efficiency, low fuel consumption, high torque and strong power.
2. We have a unique transmission technology with a well-designed gear transmission mechanism, which greatly reduces vibration and noise.
3. Perfect fuel injection technology, the fuel injection system we have developed ourselves can ensure that every drop of oil can exert its maximum effect, making the fuel consumption rate at the most ideal level.
The Details of this diesel engine
| Model | 152F/P | 154F/P | 168FA/P | 168FB/P | 170F/P | 173F/P | 177F/P | 182FA/P | 188F/P | 190F/P |
| Form | Single cylinder, four stroke, forced air cooling | |||||||||
| Lgnilion mode | Contactless transistor electronic ignition | |||||||||
| Starting mode | Recovery manual start | |||||||||
| (g/kw-h) Fuel consumption (g/kW-h) | w450 | W420 | <395 | w395 | w374 | w374 | W374 | W374 | W374 | w374 |
| (mm ) Bore / stroke (mm) | 52x46 | 54x38 | 68x45 | 68x45 | 70x45 | 73x58 | 77x58 | 82x64 | 88x64 | 90x66 |
| (ml) Piston displacement (ML) | 98 | 87 | 163 | 196 | 215 | 242 | 270 | 338 | 389 | 420 |
| (Kw/rpm) Maxirmim pov/er/speed | 1.15/3600 | 1.15/3600 | 3.2/3600 | 3.8/3600 | 4.0/3600 | 4.2/3600 | 4.6/3600 | 6.1/3600 | 7.2/3600 | 8.1/3600 |
| (N-m/rpm) | 2.5/2600 | 3.0/2600 | 8.8/2600 | 10.2/2600 | 12/2600 | 13/2600 | 14/2600 | 19/2500 | 21/2500 | 23/2500 |
| Net weight (kg) | 8.8 | 10 | 18 | 18 | 18 | 25 | 25 | 31 | 31 | 32 |
| 外形尺寸[mm] Boun^r^in^nsion [mm](L xWx H) | 280x270x345 | 280x270x345 | 350x315x335 | 350x315x335 | 350x315x335 | 495x430x505 | 495x430x505 | 495x430x505 | 495x430x505 | 495x430x505 |
